Level Control Interface : Client side implementation. More...

#include <level_control.h>

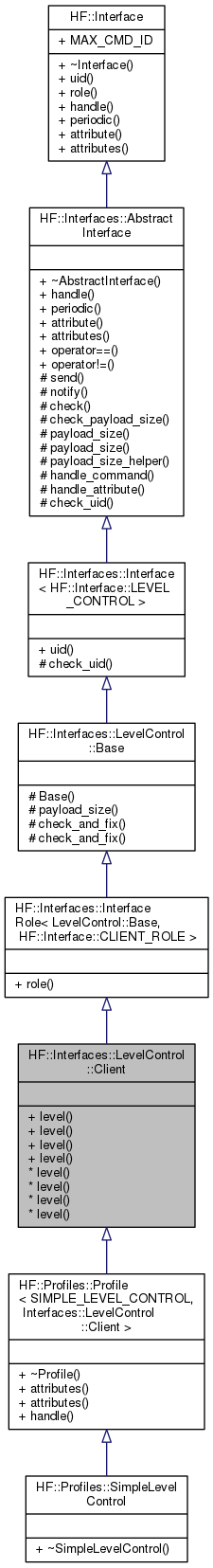

Inheritance diagram for HF::Interfaces::LevelControl::Client:

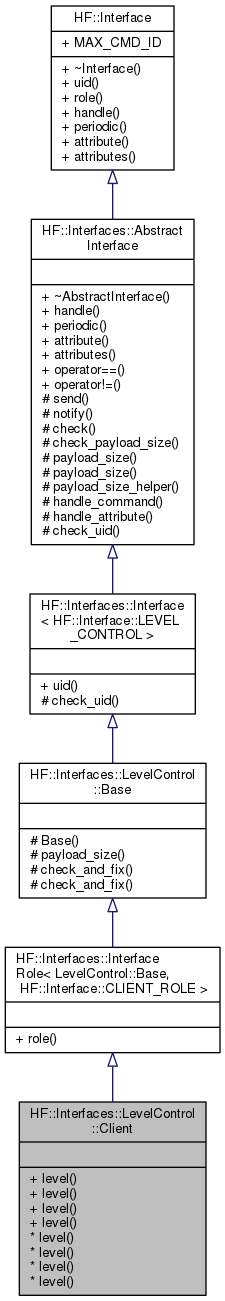

Collaboration diagram for HF::Interfaces::LevelControl::Client:

Public Member Functions
Commands
void	level (Protocol::Address &addr, uint8_t new_level)
	Send a `SET_LEVEL_CMD` to the given address to set the level at `new_level`. More...

void	level (uint8_t new_level)
	Send a `SET_LEVEL_CMD` to broadcast network address to set the level at `new_level`. More...

void	level (Protocol::Address &addr, float new_level)
	Send a `SET_LEVEL_CMD` to the given address to set the level at `new_level`. More...

void	level (float new_level)
	Send a `SET_LEVEL_CMD` to broadcast network address to set the level at `new_level`. More...

Public Member Functions inherited from HF::Interfaces::InterfaceRole< LevelControl::Base, HF::Interface::CLIENT_ROLE >
HF::Interface::Role	role () const
	Return the Interface::Role this interface implements. More...

Public Member Functions inherited from HF::Interfaces::Interface< HF::Interface::LEVEL_CONTROL >
uint16_t	uid () const
	This method returns the interface UID. More...

Public Member Functions inherited from HF::Interfaces::AbstractInterface
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

void	periodic (uint32_t time)
	Handle periodic processing. More...

HF::Attributes::IAttribute *	attribute (uint8_t uid)
	Return a pointer to the interface attribute with the given `uid`. More...

virtual HF::Attributes::UIDS	attributes (uint8_t pack_id=HF::Attributes::Pack::MANDATORY) const
	Return a vector containing the attribute UIDs, for the given pack ID. More...

Additional Inherited Members
Public Types inherited from HF::Interface
enum	Role { CLIENT_ROLE = 0, SERVER_ROLE = 1 }
	Interface roles. More...

enum	UID { DEVICE_MANAGEMENT = 0x0001, BIND_MANAGEMENT = 0x0002, GROUP_MANAGEMENT = 0x0003, IDENTIFY = 0x0004, DEVICE_INFORMATION = 0x0005, ATTRIBUTE_REPORTING = 0x0006, BATCH_PROGRAM_MANAGEMENT = 0x0007, EVENT_SCHEDULING = 0x0008, WEEKLY_SCHEDULING = 0x0009, GROUP_TABLE = 0x000A, TAMPER_ALERT = 0x0101, TIME = 0x0102, POWER = 0x0110, KEEP_ALIVE = 0x0115, RSSI = 0x0111, SUOTA = 0x0400, ALERT = 0x0100, ON_OFF = 0x0200, LEVEL_CONTROL = 0x0201, COLOUR_CONTROL = 0x0202, SIMPLE_KEYPAD = 0x0203, SIMPLE_POWER_METER = 0x0300, SIMPLE_TEMPERATURE = 0x0301, SIMPLE_HUMIDITY = 0x0302, SIMPLE_THERMOSTAT = 0x0303, SIMPLE_BUTTON = 0x0304, SIMPLE_VISUAL_EFFECTS = 0x0305, SIMPLE_AIR_PRESSURE = 0x0306, SIMPLE_LIGHT_SENSOR = 0x0307, RESERVED = 0x7F00, MAX_UID = 0x7FFE, ANY_UID = 0x7FFF }
	Interfaces Unique Identifiers (UID). More...

Static Public Attributes inherited from HF::Interface
static constexpr uint8_t	MAX_CMD_ID = 0xFF
	Maximum value for command IDs in interfaces.

Protected Member Functions inherited from HF::Interfaces::LevelControl::Base
uint16_t	payload_size (Protocol::Message::Interface &itf) const
	Return the minimal payload size that a message should hold when addressed at the given interface. More...

void	check_and_fix (float &value)
	Make sure level percentage values is in range [0,100]. More...

void	check_and_fix (int16_t &value)
	Make sure level percentage values is in range [0,255]. More...

Protected Member Functions inherited from HF::Interfaces::Interface< HF::Interface::LEVEL_CONTROL >
bool	check_uid (uint16_t uid) const

Protected Member Functions inherited from HF::Interfaces::AbstractInterface
virtual void	send (const Protocol::Address &addr, Protocol::Message &message)=0
	Send message `msg` to the network address given by `addr`. More...

virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const
	Notify that an attribute value as changed. More...

Common::Result	check (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if message has correct attributes to be processed by the interface. More...

Common::Result	check_payload_size (Protocol::Message &message, Common::ByteArray &payload, uint16_t offset)
	Check if `payload` data size if sufficient for processing the `message`. More...

virtual uint16_t	payload_size (Protocol::Message &message) const
	Return the minimal payload size that should be present for the given message. More...

template<typename _Message >
uint16_t	payload_size_helper () const
	Helper function template to retrieve minimum size required for serializing/deserializing the class given. More...

virtual Common::Result	handle_command (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

virtual Common::Result	handle_attribute (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...

Detailed Description

Level Control Interface : Client side implementation.

This class provides the client side of the Level Control interface.

Definition at line 338 of file level_control.h.

Member Function Documentation

◆ level() [1/4]

void HF::Interfaces::LevelControl::Client::level	(	Protocol::Address &	addr,
		uint8_t	new_level
	)

Send a SET_LEVEL_CMD to the given address to set the level at new_level.

Parameters

[in]	addr	network address to send the message to.
[in]	new_level	level value to send in the message.

Referenced by level().

Here is the caller graph for this function:

◆ level() [2/4]

void HF::Interfaces::LevelControl::Client::level ( uint8_t new_level )

inline

Send a SET_LEVEL_CMD to broadcast network address to set the level at new_level.

Parameters

[in] new_level level value to send in the message.

Definition at line 363 of file level_control.h.

References level().

             {
                Protocol::Address addr;
                level(addr, new_level);
             }

Here is the call graph for this function:

◆ level() [3/4]

void HF::Interfaces::LevelControl::Client::level	(	Protocol::Address &	addr,
		float	new_level
	)

Send a SET_LEVEL_CMD to the given address to set the level at new_level.

Parameters

[in]	addr	network address to send the message to.
[in]	new_level	level value to send in the message.

Remarks: This method converts the given new_level percentage value in the range of [0,100] to the range used by the interface [0-255].

◆ level() [4/4]

void HF::Interfaces::LevelControl::Client::level ( float new_level )

inline

Send a SET_LEVEL_CMD to broadcast network address to set the level at new_level.

Parameters

[in] new_level level value to send in the message.

Definition at line 380 of file level_control.h.

References level().

             {
                Protocol::Address addr;
                level(addr, new_level);
             }

Here is the call graph for this function:

The documentation for this class was generated from the following file:

level_control.h
