HF::Profiles::Profile2< _uid, Interface1, Interface2 > Struct Template Reference

Class template for profiles containing two interfaces. More...

#include <profiles.h>

Inheritance diagram for HF::Profiles::Profile2< _uid, Interface1, Interface2 >:

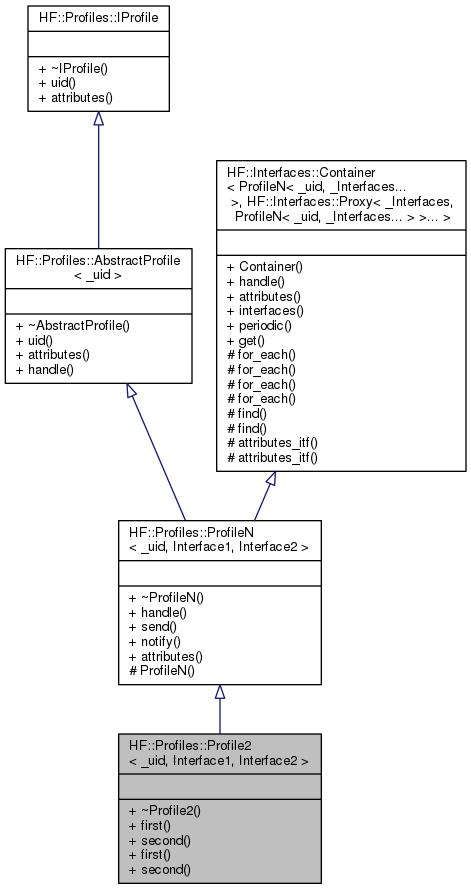

Collaboration diagram for HF::Profiles::Profile2< _uid, Interface1, Interface2 >:

Public Member Functions
Interface1 *	first ()
	Pointer to the first interface instance. More...
Interface2 *	second ()
	Pointer to the second interface instance. More...
const Interface1 *	first () const
	Pointer to the first interface instance. More...
const Interface2 *	second () const
	Pointer to the second interface instance. More...
Public Member Functions inherited from HF::Profiles::ProfileN< _uid, Interface1, Interface2 >
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...
virtual void	send (const Protocol::Address &addr, Protocol::Message &message)=0
	Send message msg to the network address given by addr. More...
virtual void	notify (const HF::Attributes::IAttribute &old_value, const HF::Attributes::IAttribute &new_value) const=0
	Notify that an attribute value as changed. More...
HF::Attributes::List	attributes (Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const
	Return a list of all the attributes for a given interface, pack id and list of attributes UID's. More...
Public Member Functions inherited from HF::Profiles::AbstractProfile< _uid >
uint16_t	uid () const
	Return this profile HAN-FUN UID. More...
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...
Public Member Functions inherited from HF::Interfaces::Container< ProfileN< _uid, _Interfaces... >, HF::Interfaces::Proxy< _Interfaces, ProfileN< _uid, _Interfaces... > >... >
	Container (ProfileN< _uid, _Interfaces... > &base)
	Constructor. More...
Common::Result	handle (Protocol::Packet &packet, Common::ByteArray &payload, uint16_t offset)
	Handle incoming messages from the network. More...
void	attributes (HF::Attributes::List &attr_list, Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const
	Return a list of all the attributes for a given interface, pack id and list of attributes UID's. More...
std::vector< Common::Interface >	interfaces () const
	Return the list of interfaces present in the wrapper. More...
const std::tuple_element< N, interfaces_t >::type::base *	get () const
	Retrieve a pointer to the N optional interface implemented by this unit. More...

Additional Inherited Members
Protected Member Functions inherited from HF::Interfaces::Container< ProfileN< _uid, _Interfaces... >, HF::Interfaces::Proxy< _Interfaces, ProfileN< _uid, _Interfaces... > >... >
void	for_each (std::function< void(HF::Interface &)> func) const
	Call the given function for all the interfaces. More...
void	for_each (std::function< void(HF::Interface &)> func)
	Call the given function for all the interfaces. More...
void	for_each (std::function< void(HF::Interface &)> func) const
	Helper template function to implement the HF::Units::Unit::for_each functionality. More...
void	for_each (std::function< void(HF::Interface &)> func) const
	Helper template function to implement the HF::Units::Unit::for_each functionality. More...
HF::Interface *	find (uint16_t itf_uid) const
	Find the interface with the given UID. More...
HF::Interface *	find (uint16_t itf_uid) const
	Final template instantiation that finds the wrapped interface with the given UID. More...
void	attributes_itf (HF::Attributes::List &attrs, Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const
	Helper function used to provide HF::Units::Unit::attributes functionality. More...
void	attributes_itf (HF::Attributes::List &attrs, Common::Interface itf, uint8_t pack_id, const HF::Attributes::UIDS &uids) const
	Helper function used to provide HF::Units::Unit::attributes functionality. More...

Detailed Description

template<uint16_t _uid, typename Interface1, typename Interface2>
struct HF::Profiles::Profile2< _uid, Interface1, Interface2 >

Class template for profiles containing two interfaces.

Definition at line 384 of file profiles.h.

Member Function Documentation

first() [1/2]

template<uint16_t _uid, typename Interface1, typename Interface2>

Interface1* HF::Profiles::Profile2< _uid, Interface1, Interface2 >::first ( )

inline

Pointer to the first interface instance.

Returns

pointer to the interface instance.

Definition at line 398 of file profiles.h.

         {
            return const_cast<Interface1 *>(profile_t::template get<0>());
         }

first() [2/2]

template<uint16_t _uid, typename Interface1, typename Interface2>

const Interface1* HF::Profiles::Profile2< _uid, Interface1, Interface2 >::first ( ) const

inline

Pointer to the first interface instance.

Returns

pointer to the interface instance.

Definition at line 418 of file profiles.h.

         {
            return const_cast<Interface1 *>(profile_t::template get<0>());
         }

second() [1/2]

template<uint16_t _uid, typename Interface1, typename Interface2>

Interface2* HF::Profiles::Profile2< _uid, Interface1, Interface2 >::second ( )

inline

Pointer to the second interface instance.

Returns

pointer to the interface instance.

Definition at line 408 of file profiles.h.

         {
            return const_cast<Interface2 *>(profile_t::template get<1>());
         }

second() [2/2]

template<uint16_t _uid, typename Interface1, typename Interface2>

const Interface2* HF::Profiles::Profile2< _uid, Interface1, Interface2 >::second ( ) const

inline

Pointer to the second interface instance.

Returns

pointer to the interface instance.

Definition at line 428 of file profiles.h.

         {
            return const_cast<Interface2 *>(profile_t::template get<1>());
         }

---

The documentation for this struct was generated from the following file:

• profiles.h
