group_management.h File Reference

This file contains the definitions for the Group Management service. More...

#include "hanfun/protocol.h"
#include "hanfun/core.h"
#include "hanfun/core/group_table.h"
#include <string>
#include <map>
#include <forward_list>

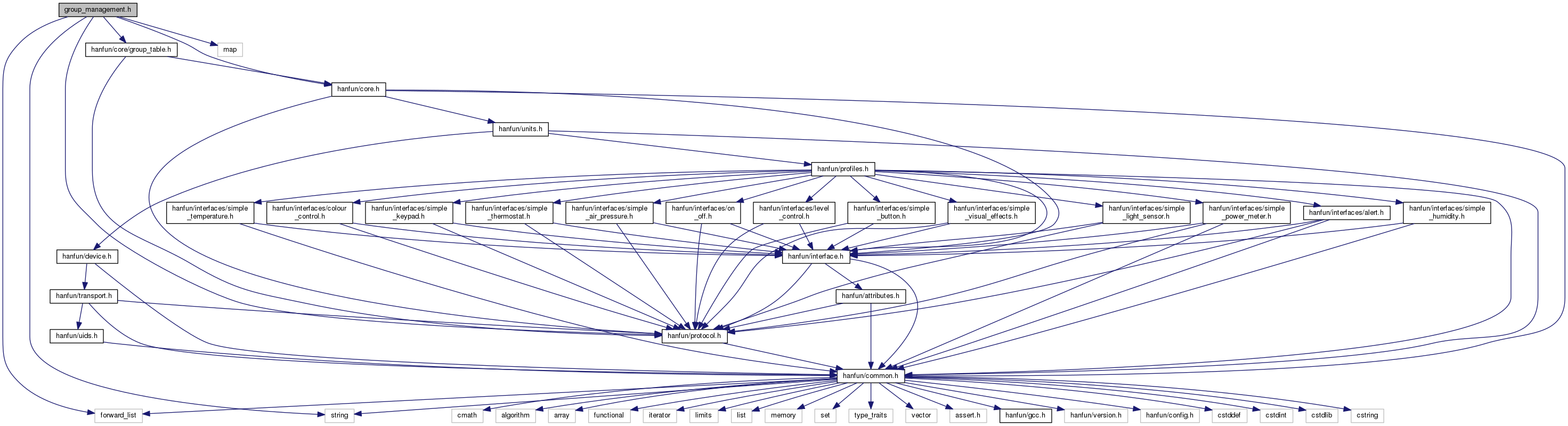

Include dependency graph for group_management.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	HF::Core::GroupManagement::GroupAddress
	This class represents a group address. More...
struct	HF::Core::GroupManagement::Group
	This class represents a group of devices. More...
struct	HF::Core::GroupManagement::CreateMessage
	Message payload for a HF::GroupManagement::CREATE_CMD request. More...
struct	HF::Core::GroupManagement::CreateResponse
	Message payload for a HF::GroupManagement::CREATE_CMD response. More...
struct	HF::Core::GroupManagement::Message
	Parent class for the message payload for a HF::GroupManagement::ADD_CMD and HF::GroupManagement::REMOVE_CMD requests. More...
struct	HF::Core::GroupManagement::InfoResponse
	Message payload for a HF::GroupManagement::GET_INFO_CMD response. More...
struct	HF::Core::GroupManagement::NumberOfGroups
	Helper class to handle the Number Of Groups attribute for the Group Management service. More...
struct	HF::Core::GroupManagement::IEntries
	Device Management - Persistent Storage API. More...
struct	HF::Core::GroupManagement::Entries
	Default implementation of the persistence API. More...
struct	HF::Core::GroupManagement::Base
	Group Management Service : Parent. More...
class	HF::Core::GroupManagement::IServer
	Group Management Service : Server side implementation. More...
struct	HF::Core::GroupManagement::IGroupTable
	Interface to the HF::GroupTable API used to update the device's group tables entries on add/remove events. More...
struct	HF::Core::GroupManagement::GroupTableClient
	Default implementation of the IGroupTable interface. More...
class	HF::Core::GroupManagement::Server< _Entries, _GroupTable >
	Helper class used to implement custom functionality to the group management server side. More...
struct	HF::Core::GroupManagement::Client
	Group Management Service : Client side implementation. More...

Namespaces
	HF
	Top-level namespace for the HAN-FUN library.
	HF::Devices
	This is the top-level namespace for the HAN-FUN devices implementation.
	HF::Devices::Concentrator
	This is the namespace for the implementation of HAN-FUN Concentrator devices.
	HF::Core
	This is the top-level namespace for the Core Services and Interfaces implementation.
	HF::Core::GroupManagement
	This namespace contains the implementation of the Group Management service.

Typedefs
typedef Protocol::Address	HF::Core::GroupManagement::Member
	This class represents a member of a group.
typedef GroupAddress	HF::Core::GroupManagement::DeleteMessage
	Message payload for a HF::GroupManagement::DELETE_CMD request.
typedef Protocol::Response	HF::Core::GroupManagement::DeleteResponse
	Message payload for a HF::GroupManagement::DELETE_CMD response.
typedef Message	HF::Core::GroupManagement::AddMessage
	Message payload for a HF::GroupManagement::ADD_CMD request.
typedef Protocol::Response	HF::Core::GroupManagement::AddResponse
	Message payload for a HF::GroupManagement::ADD_CMD response.
typedef Message	HF::Core::GroupManagement::RemoveMessage
	Message payload for a HF::GroupManagement::REMOVE_CMD request.
typedef Protocol::Response	HF::Core::GroupManagement::RemoveResponse
	Message payload for a HF::GroupManagement::REMOVE_CMD response.
typedef GroupAddress	HF::Core::GroupManagement::InfoMessage
	Message payload for a HF::GroupManagement::GET_INFO_CMD request.

Enumerations
enum	HF::Core::GroupManagement::CMD {   HF::Core::GroupManagement::CREATE_CMD = 0x01, HF::Core::GroupManagement::DELETE_CMD = 0x02, HF::Core::GroupManagement::ADD_CMD = 0x03, HF::Core::GroupManagement::REMOVE_CMD = 0x04,   HF::Core::GroupManagement::GET_INFO_CMD = 0x05 }
	Command IDs. More...
enum	HF::Core::GroupManagement::Attributes { HF::Core::GroupManagement::NUMBER_OF_GROUPS_ATTR = 0x01 }
	Attributes. More...

Functions
HF::Attributes::IAttribute *	HF::Core::create_attribute (GroupManagement::IServer *server, uint8_t uid)
	Create an attribute object that can hold the attribute with the given uid. More...
HF::Attributes::IAttribute *	HF::Core::GroupManagement::create_attribute (uint8_t uid)
	Create an attribute object that can hold the attribute with the given uid. More...
std::ostream &	operator<< (std::ostream &stream, const HF::Core::GroupManagement::CMD command)
	Convert the given command into a string and write it to the given stream. More...
std::ostream &	operator<< (std::ostream &stream, const HF::Core::GroupManagement::Attributes attribute)
	Convert the given attribute into a string and write it to the given stream. More...

Detailed Description

This file contains the definitions for the Group Management service.

Version

1.5.3

Copyright

Copyright ©   2017 ULE Alliance

For licensing information, please see the file 'LICENSE' in the root folder.

Initial development by Bithium S.A. [http://www.bithium.com]

Definition in file group_management.h.
