HF::Core::GroupManagement::Entries Struct Reference

Default implementation of the persistence API. More...

#include <group_management.h>

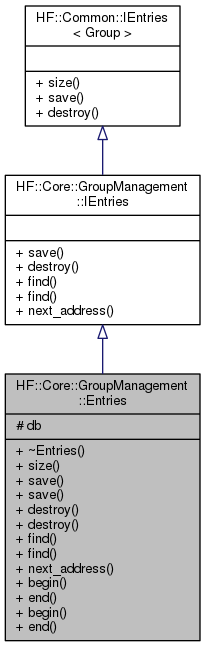

Inheritance diagram for HF::Core::GroupManagement::Entries:

Collaboration diagram for HF::Core::GroupManagement::Entries:

Public Member Functions
uint16_t	size () const
	Return the number of entries in the container. More...
Common::Result	save (uint16_t address, const std::string &name)
	Store the given entry to persistent storage. More...
Common::Result	destroy (const uint16_t address)
	Destroy the entry given by address in the persistent storage. More...
Common::Result	destroy (const Group &entry)
	Destroy the given entry in the persistent storage. More...
GroupPtr	find (uint16_t address) const
	Find the group with the given group address. More...
GroupPtr	find (const std::string &name) const
	Find the group with the given name. More...
uint16_t	next_address () const
	Return next available address for device group. More...
iterator	begin ()
	Get an iterator to the start of the entries in this container. More...
iterator	end ()
	Get an iterator to the end of the entries in this container. More...
const_iterator	begin () const
	Get a constant iterator to the start of the entries in this container. More...
const_iterator	end () const
	Get a constant iterator to the start of the entries in this container. More...
Public Member Functions inherited from HF::Common::IEntries< Group >
virtual Result	save (const Group &entry)=0
	Store the given entry to persistent storage. More...
virtual Result	destroy (const Group &entry)=0
	Destroy the given entry in the persistent storage. More...

Protected Attributes
Container	db
	Actual container for the entries.

Detailed Description

Default implementation of the persistence API.

Definition at line 641 of file group_management.h.

Member Function Documentation

begin() [1/2]

iterator HF::Core::GroupManagement::Entries::begin ( )

inline

Get an iterator to the start of the entries in this container.

Returns

iterator to the start of the entries present in this container.

Definition at line 682 of file group_management.h.

References db.

            {
               return db.begin();
            }

begin() [2/2]

const_iterator HF::Core::GroupManagement::Entries::begin ( ) const

inline

Get a constant iterator to the start of the entries in this container.

Returns

constant iterator to the start of the entries present in this container.

Definition at line 702 of file group_management.h.

References db.

            {
               return db.cbegin();
            }

destroy() [1/2]

Common::Result HF::Core::GroupManagement::Entries::destroy ( const uint16_t  address )

virtual

Destroy the entry given by address in the persistent storage.

Parameters

[in]

address

the address to the entry to erase.

Return values

Common::Result::OK,if	the entry was destroyed.
Common::Result::FAIL_ARG	otherwise.

Implements HF::Core::GroupManagement::IEntries.

destroy() [2/2]

Common::Result HF::Core::GroupManagement::Entries::destroy

(

const Group &

entry

)

Destroy the given entry in the persistent storage.

Warning

the reference passed into this method SHOULD NOT be considered valid if it was obtained by calling the find method.

Parameters

[in]

entry

reference to the entry to erase.

Return values

Common::Result::OK,if	the entry was destroyed.
Common::Result::FAIL_ARG	otherwise.

end() [1/2]

iterator HF::Core::GroupManagement::Entries::end ( )

inline

Get an iterator to the end of the entries in this container.

Returns

iterator to the end of the entries present in this container.

Definition at line 692 of file group_management.h.

References db.

            {
               return db.end();
            }

end() [2/2]

const_iterator HF::Core::GroupManagement::Entries::end ( ) const

inline

Get a constant iterator to the start of the entries in this container.

Returns

constant iterator to the start of the entries present in this container.

Definition at line 712 of file group_management.h.

References db.

            {
               return db.cend();
            }

find() [1/2]

GroupPtr HF::Core::GroupManagement::Entries::find ( uint16_t  address ) const

virtual

Find the group with the given group address.

Parameters

[in]

address

HF address to search for.

Returns

pointer to the group with the given address, nullptr otherwise.

Implements HF::Core::GroupManagement::IEntries.

find() [2/2]

GroupPtr HF::Core::GroupManagement::Entries::find ( const std::string &  name ) const

virtual

Find the group with the given name.

Parameters

[in]

name

group name to search for.

Returns

pointer to the group with the given name, nullptr otherwise.

Implements HF::Core::GroupManagement::IEntries.

next_address()

uint16_t HF::Core::GroupManagement::Entries::next_address ( ) const

virtual

Return next available address for device group.

Returns

the address to use in the next group, or GroupAddress::NO_ADDR if no address is available.

Implements HF::Core::GroupManagement::IEntries.

save()

Common::Result HF::Core::GroupManagement::Entries::save ( uint16_t  address, const std::string &  name  )

virtual

Store the given entry to persistent storage.

Parameters

[in]	address	HF group address for the new group.
[in]	name	name for the new group.

Return values

Common::Result::OK	if the entry was saved,
Common::Result::FAIL_UNKNOWN	otherwise.

Implements HF::Core::GroupManagement::IEntries.

size()

uint16_t HF::Core::GroupManagement::Entries::size ( ) const

virtual

Return the number of entries in the container.

Returns

the number of entries in the container.

Implements HF::Common::IEntries< Group >.

---

The documentation for this struct was generated from the following file:

• group_management.h
