HF::Core::GroupManagement::Message Struct Reference

Parent class for the message payload for a HF::GroupManagement::ADD_CMD and HF::GroupManagement::REMOVE_CMD requests. More...

#include <group_management.h>

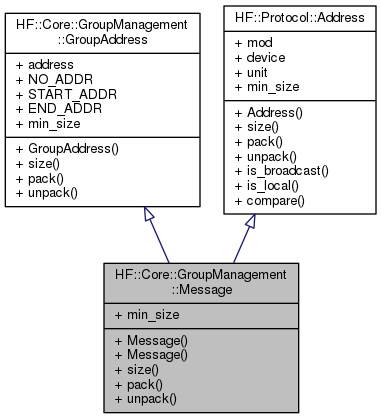

Inheritance diagram for HF::Core::GroupManagement::Message:

Collaboration diagram for HF::Core::GroupManagement::Message:

Public Member Functions
	Message (uint16_t group, uint16_t device, uint8_t unit)
	Constructor. More...
	Message ()
	Empty Constructor. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...
Public Member Functions inherited from HF::Core::GroupManagement::GroupAddress
	GroupAddress (uint16_t address=0)
	Constructor. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...
Public Member Functions inherited from HF::Protocol::Address
	Address (uint16_t _dev=BROADCAST_ADDR, uint8_t _unit=BROADCAST_UNIT, Type _mod=DEVICE)
	Create a new message address. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...
bool	is_broadcast ()
	Checks if this address if for the Protocol::BROADCAST_ADDR and Protocol::BROADCAST_UNIT. More...
bool	is_local (uint16_t address)
	Checks if the given device address is equal to the device address present in this Protocol::Address object. More...
int	compare (const Address &other) const
	Compare this address with the given address in other. More...

Static Public Attributes
static constexpr uint16_t	min_size
	Minimum pack/unpack required data size.
Static Public Attributes inherited from HF::Core::GroupManagement::GroupAddress
static constexpr uint16_t	NO_ADDR = 0x0000
	Empty Group Address. More...
static constexpr uint16_t	START_ADDR = 0x0001
	First HAN-FUN Group Address. More...
static constexpr uint16_t	END_ADDR = 0x7FFF
	Last HAN-FUN Group Address. More...
static constexpr uint16_t	min_size = sizeof(uint16_t)
	Minimum pack/unpack required data size.
Static Public Attributes inherited from HF::Protocol::Address
static constexpr uint16_t	min_size
	Minimum pack/unpack required data size.

Additional Inherited Members
Public Types inherited from HF::Protocol::Address
enum	Type { DEVICE = 0, GROUP = 1 }
	HAN-FUN Network Destination Address Types. More...
Data Fields inherited from HF::Core::GroupManagement::GroupAddress
uint16_t	address
	Group Address
Data Fields inherited from HF::Protocol::Address
uint16_t	mod: 1
	Address modifier. More...
uint16_t	device: 15
	Device Address. More...
uint8_t	unit
	Source Unit. More...

Detailed Description

Parent class for the message payload for a HF::GroupManagement::ADD_CMD and HF::GroupManagement::REMOVE_CMD requests.

Definition at line 447 of file group_management.h.

Constructor & Destructor Documentation

Message() [1/2]

HF::Core::GroupManagement::Message::Message ( uint16_t  group, uint16_t  device, uint8_t  unit  )

inline

Constructor.

Parameters

[in]	group	the group's address.
[in]	device	the device's address to add/remove to/from the group.
[in]	unit	the device's unit ID to add/remove to/from the group.

Definition at line 456 of file group_management.h.

                                                                  :
               GroupAddress(group), Protocol::Address(device, unit)
            {}

Message() [2/2]

HF::Core::GroupManagement::Message::Message ( )

inline

Empty Constructor.

Mainly used for the unpack function.

Definition at line 465 of file group_management.h.

            {}

Member Function Documentation

pack()

uint16_t HF::Core::GroupManagement::Message::pack	(	Common::ByteArray &	array,
		uint16_t	offset = 0
	)		const

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

size()

uint16_t HF::Core::GroupManagement::Message::size

(

)

const

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

unpack()

uint16_t HF::Core::GroupManagement::Message::unpack	(	const Common::ByteArray &	array,
		uint16_t	offset = 0
	)

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

---

The documentation for this struct was generated from the following file:

• group_management.h
