scheduling.h File Reference

This file contains the common definitions for the scheduling services. More...

#include "hanfun/protocol.h"
#include "hanfun/core.h"
#include <string>
#include <map>
#include <forward_list>
#include <algorithm>

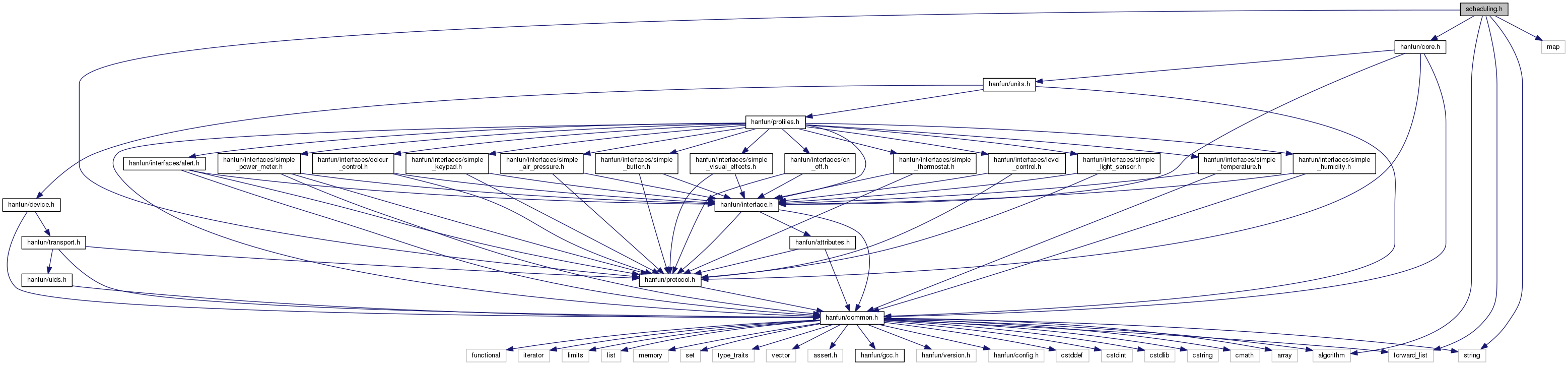

Include dependency graph for scheduling.h:

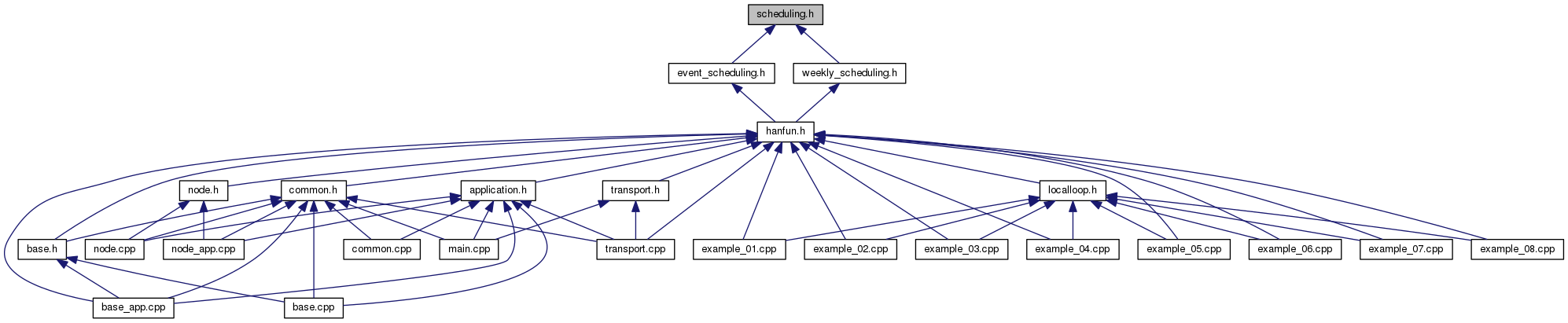

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	HF::Core::Scheduling::MaximumNumberOfEntries
	Helper class to handle the Maximum Number Of Entries attribute for the scheduling services. More...
struct	HF::Core::Scheduling::NumberOfEntries
	Helper class to handle the Number Of Entries attribute for the scheduling services. More...
struct	HF::Core::Scheduling::Status
	Helper class to handle the Status attribute for the scheduling services. More...
struct	HF::Core::Scheduling::Entry< _Type >
	Base class for scheduling services entries. More...
struct	HF::Core::Scheduling::ActivateScheduler
	Message payload for a Scheduling::ACTIVATE_SCHEDULER_CMD request. More...
struct	HF::Core::Scheduling::DefineEventResponse
	Response message payload for a Scheduling::DEFINE_EVENT_CMD request. More...
struct	HF::Core::Scheduling::UpdateStatus
	Message payload for a Scheduling::UPDATE_STATUS_CMD request. More...
struct	HF::Core::Scheduling::GetEntry
	Message payload for a Scheduling::GET_ENTRY_CMD request. More...
struct	HF::Core::Scheduling::GetEntryResponse< _Type >
	Response message payload for a Scheduling::GET_ENTRY_CMD request. More...
struct	HF::Core::Scheduling::IEntries< _Type >
	Scheduling - Persistent Storage API. More...
struct	HF::Core::Scheduling::Entries< _Type >
	Default implementation of the persistence API. More...
struct	HF::Core::Scheduling::Base< _ITF, _Parent >
	Scheduling Service : Parent. More...
class	HF::Core::Scheduling::IServer
	Scheduling Service : Server side implementation. More...
class	HF::Core::Scheduling::IClient
	Scheduling Service : Client side implementation. More...

Namespaces
	HF
	Top-level namespace for the HAN-FUN library.
	HF::Core
	This is the top-level namespace for the Core Services and Interfaces implementation.
	HF::Core::Scheduling
	This namespace contains the implementation of the Scheduling service.

Macros
#define	HF_SCHEDULING_SETTER_HELPER(_Type, _name, _value)
	Helper macro to implement attribute setters for the Scheduling case. More...

Typedefs
typedef Protocol::Response	HF::Core::Scheduling::ActivateSchedulerResponse
	Response message payload for a Scheduling::ACTIVATE_SCHEDULER_CMD request.
typedef DefineEventResponse	HF::Core::Scheduling::UpdateStatusResponse
	Response message payload for a Scheduling::UPDATE_STATUS_CMD request.
typedef GetEntry	HF::Core::Scheduling::DeleteEvent
	Message payload for a Scheduling::DELETE_CMD request.
typedef DefineEventResponse	HF::Core::Scheduling::DeleteEventResponse
	Response message payload for a Scheduling::DELETE_CMD request.
typedef HF::Protocol::Response	HF::Core::Scheduling::DeleteAllResponse
	Response Message payload for a Scheduling::DELETE_ALL_CMD request.

Enumerations
enum	HF::Core::Scheduling::CMD {   HF::Core::Scheduling::ACTIVATE_SCHEDULER_CMD = 0x01, HF::Core::Scheduling::DEFINE_EVENT_CMD = 0x02, HF::Core::Scheduling::UPDATE_STATUS_CMD = 0x03, HF::Core::Scheduling::GET_ENTRY_CMD = 0x04,   HF::Core::Scheduling::DELETE_CMD = 0x05, HF::Core::Scheduling::DELETE_ALL_CMD = 0x06 }
	Command IDs. More...
enum	HF::Core::Scheduling::Attributes { HF::Core::Scheduling::MAXIMUM_NUMBER_OF_ENTRIES_ATTR = 0x01, HF::Core::Scheduling::NUMBER_OF_ENTRIES_ATTR = 0x02, HF::Core::Scheduling::STATUS_ATTR = 0x03 }
	Attributes. More...

Functions
HF::Attributes::IAttribute *	HF::Core::create_attribute (Scheduling::IServer *server, Interface::UID itf_uid, uint8_t uid)
	Create an attribute object that can hold the attribute with the given uid. More...
HF::Attributes::IAttribute *	HF::Core::Scheduling::create_attribute (HF::Interface::UID itf_uid, uint8_t uid)
	Create an attribute object that can hold the attribute with the given uid. (HF::Core::Scheduling::IServer *,uint8_t) More...
std::ostream &	operator<< (std::ostream &stream, const HF::Core::Scheduling::CMD command)
	Convert the given command into a string and write it to the given stream. More...
std::ostream &	operator<< (std::ostream &stream, const HF::Core::Scheduling::Attributes attribute)
	Convert the given attribute into a string and write it to the given stream. More...

Detailed Description

This file contains the common definitions for the scheduling services.

Version

1.5.3

Copyright

Copyright ©   2017 ULE Alliance

For licensing information, please see the file 'LICENSE' in the root folder.

Initial development by Bithium S.A. [http://www.bithium.com]

Definition in file scheduling.h.

Macro Definition Documentation

HF_SCHEDULING_SETTER_HELPER

#define HF_SCHEDULING_SETTER_HELPER	(		_Type,
			_name,
			_value
	)

Value:

{                                                                                   \
      _Type::value_type old = this->_name;                                             \
                                                                                       \
      this->_name = _value;                                                            \
                                                                                       \
      _Type old_attr(static_cast<HF::Interface::UID>(this->uid()), old, this);         \
      _Type new_attr(static_cast<HF::Interface::UID>(this->uid()), this->_name, this); \
                                                                                       \
      notify(old_attr, new_attr);                                                      \
   }

Helper macro to implement attribute setters for the Scheduling case.

Parameters

[in]	_Type	helper class that wraps the attribute.
[in]	_name	name of the attribute to generate the setter for.
[in]	_value	name of the variable containing the new value.

Definition at line 37 of file scheduling.h.
