HF::Core::Scheduling::IEntries< _Type > Struct Template Reference

Scheduling - Persistent Storage API. More...

#include <scheduling.h>

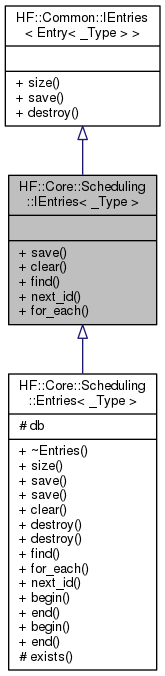

Inheritance diagram for HF::Core::Scheduling::IEntries< _Type >:

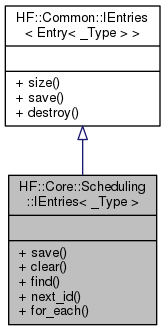

Collaboration diagram for HF::Core::Scheduling::IEntries< _Type >:

Public Types
typedef Entry< _Type >	EntryType
	Entry helper type. More...
typedef Common::Pointer< EntryType >	EntryPointer
	Entry pointer helper. More...

Public Member Functions
virtual Common::Result	save (const EntryType &entry)=0
	Store the given entry to persistent storage. More...
virtual void	clear (void)=0
	Erase all the DB entries.
virtual EntryPointer	find (uint8_t id) const =0
	Find the Event with the given id. More...
virtual uint8_t	next_id () const =0
	Return next available id for event. More...
virtual void	for_each (std::function< void(EntryType &e)> func)=0
	Call the given function with each entry in the DB as argument. More...
Public Member Functions inherited from HF::Common::IEntries< Entry< _Type > >
virtual uint16_t	size () const=0
	Return the number of entries in the container. More...
virtual Result	save (const Entry< _Type > &entry)=0
	Store the given entry to persistent storage. More...
virtual Result	destroy (const Entry< _Type > &entry)=0
	Destroy the given entry in the persistent storage. More...

Detailed Description

template<typename _Type>
struct HF::Core::Scheduling::IEntries< _Type >

Scheduling - Persistent Storage API.

Template Parameters

_Type

the specific type of the scheduling entry.

Definition at line 483 of file scheduling.h.

Member Typedef Documentation

EntryPointer

template<typename _Type >

typedef Common::Pointer<EntryType> HF::Core::Scheduling::IEntries< _Type >::EntryPointer

Entry pointer helper.

Definition at line 486 of file scheduling.h.

EntryType

template<typename _Type >

typedef Entry<_Type> HF::Core::Scheduling::IEntries< _Type >::EntryType

Entry helper type.

Definition at line 485 of file scheduling.h.

Member Function Documentation

find()

template<typename _Type >

virtual EntryPointer HF::Core::Scheduling::IEntries< _Type >::find ( uint8_t  id ) const

pure virtual

Find the Event with the given id.

Parameters

[in]

id

Event ID to search for.

Returns

pointer to the entry with the given id, nullptr otherwise.

Implemented in HF::Core::Scheduling::Entries< _Type >.

for_each()

template<typename _Type >

virtual void HF::Core::Scheduling::IEntries< _Type >::for_each ( std::function< void(EntryType &e)>  func )

pure virtual

Call the given function with each entry in the DB as argument.

Parameters

[in]

func

function to apply to all entries in the store.

next_id()

template<typename _Type >

virtual uint8_t HF::Core::Scheduling::IEntries< _Type >::next_id ( ) const

pure virtual

Return next available id for event.

Returns

the id to use in the next event, or Scheduler::Entry::AVAILABLE_ID if no id is available.

Implemented in HF::Core::Scheduling::Entries< _Type >.

save()

template<typename _Type >

virtual Common::Result HF::Core::Scheduling::IEntries< _Type >::save ( const EntryType &  entry )

pure virtual

Store the given entry to persistent storage.

Parameters

[in]

entry

the entry to save.

Return values

Common::Result::OK	if the entry was saved,
Common::Result::FAIL_ARG	if an entry already exists with the same ID,
Common::Result::FAIL_UNKNOWN	otherwise.

Implemented in HF::Core::Scheduling::Entries< _Type >.

---

The documentation for this struct was generated from the following file:

• scheduling.h
