Response message payload for a Scheduling::GET_ENTRY_CMD request. More...

#include <scheduling.h>

Inheritance diagram for HF::Core::Scheduling::GetEntryResponse< _Type >:

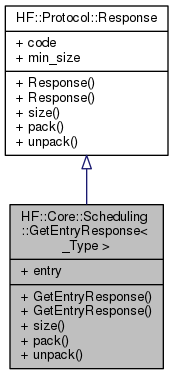

Collaboration diagram for HF::Core::Scheduling::GetEntryResponse< _Type >:

Public Member Functions
uint16_t	size () const
	Number bytes needed to serialize the message. More...

uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...

uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

Public Member Functions inherited from HF::Protocol::Response
uint16_t	size () const
	Number bytes needed to serialize the message. More...

uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...

uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

Data Fields
Entry< _Type >	entry
	&Entry data to return to client. More...

Additional Inherited Members
Static Public Attributes inherited from HF::Protocol::Response
static constexpr uint16_t	min_size = sizeof(uint8_t)
	Minimum number of bytes required by this message.

Detailed Description

template<typename _Type>
struct HF::Core::Scheduling::GetEntryResponse< _Type >

Response message payload for a Scheduling::GET_ENTRY_CMD request.

Template Parameters

_Type the specific data for scheduling service entry.

Definition at line 402 of file scheduling.h.

Member Function Documentation

◆ pack()

template<typename _Type >

uint16_t HF::Core::Scheduling::GetEntryResponse< _Type >::pack	(	Common::ByteArray &	array,
		uint16_t	offset = `0`
	)		const

inline

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns: the number of bytes written.

Definition at line 427 of file scheduling.h.

References HF::Core::Scheduling::GetEntryResponse< _Type >::entry, HF_SERIALIZABLE_CHECK, HF::Common::OK, HF::Protocol::Response::pack(), and HF::Core::Scheduling::GetEntryResponse< _Type >::size().

             {
                HF_SERIALIZABLE_CHECK(array, offset, size());

                uint8_t start = offset;

                offset += Protocol::Response::pack(array, offset);

                if (code != Common::Result::OK)
                {
                   goto _end;
                }

                offset += entry.pack(array, offset);

                _end:
                return offset - start;
             }

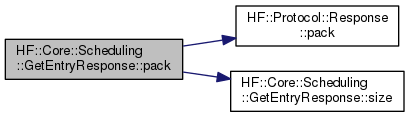

Here is the call graph for this function:

◆ size()

template<typename _Type >

uint16_t HF::Core::Scheduling::GetEntryResponse< _Type >::size ( ) const

inline

Number bytes needed to serialize the message.

Returns: number of bytes the message requires to be serialized.

Definition at line 416 of file scheduling.h.

References HF::Protocol::Response::min_size, and HF::Common::OK.

Referenced by HF::Core::Scheduling::GetEntryResponse< _Type >::pack().

             {
                if (code != Common::Result::OK)
                {
                   return min_size;
                }

                return min_size + Entry<_Type>::min_size;
             }

Here is the caller graph for this function:

◆ unpack()

template<typename _Type >

uint16_t HF::Core::Scheduling::GetEntryResponse< _Type >::unpack	(	const Common::ByteArray &	array,
		uint16_t	offset = `0`
	)

inline

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns: the number of bytes read.

Definition at line 447 of file scheduling.h.

References HF::Core::Scheduling::GetEntryResponse< _Type >::entry, HF_SERIALIZABLE_CHECK, HF::Protocol::Response::min_size, HF::Common::OK, and HF::Protocol::Response::unpack().

             {
                HF_SERIALIZABLE_CHECK(array, offset, min_size);

                uint8_t start = offset;

                offset += Protocol::Response::unpack(array, offset);

                if (code != Common::Result::OK)
                {
                   goto _end;
                }

                HF_SERIALIZABLE_CHECK(array, offset, entry.size());
                offset += entry.unpack(array, offset);

                _end:
                return offset - start;
             }
