HF::Application::Transport Class Reference

Transport Layer implementation over TCP/IP using libuv. More...

#include <transport.h>

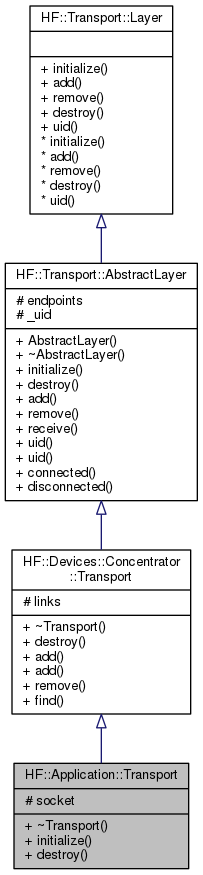

Inheritance diagram for HF::Application::Transport:

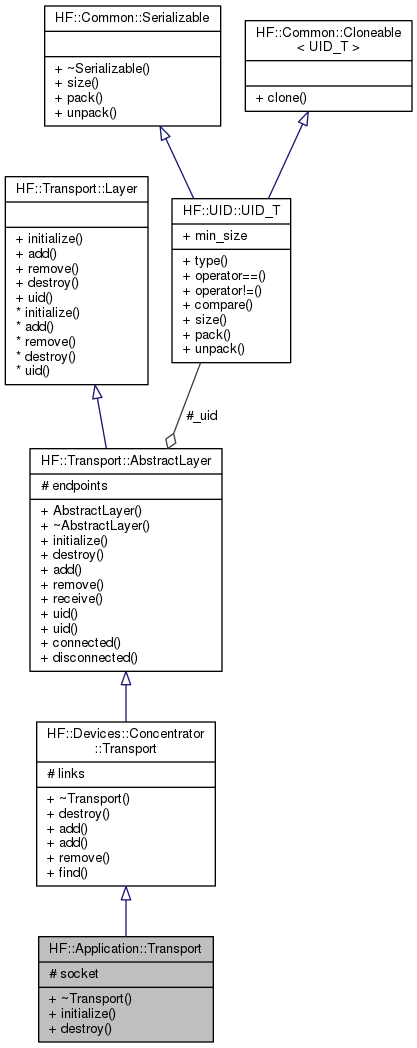

Collaboration diagram for HF::Application::Transport:

Public Member Functions
void	initialize ()
	Initialize the associated transport layer. More...
void	destroy ()
	Free the system resources associated with this transport layer.
Public Member Functions inherited from HF::Devices::Concentrator::Transport
void	add (HF::Transport::Endpoint *ep)
	Register the given Endpoint to receive events. More...
void	add (HF::Transport::Link *link)
	Add the given link to the list of known links and call the connected method for all registered end-points. More...
void	remove (HF::Transport::Link *link=nullptr)
	Call the disconnected method for all registered end-points with the given link and remove it from list of known links. More...
HF::Transport::Link *	find (uint16_t address)
	Find the link used to send messages to the HAN-FUN device with the given address. More...
Public Member Functions inherited from HF::Transport::AbstractLayer
void	add (HF::Transport::Endpoint *ep)
	Add an entry to the list of end-points connected to the transport layer. More...
void	remove (HF::Transport::Endpoint *ep=nullptr)
	Remove the entry in ep, from the list of end-points connected to the transport layer. More...
void	receive (HF::Transport::Link *link, HF::Common::ByteArray &payload)
	Receive the data in payload, coming in in the given link and deliver the decoded packet to all registered end-points. More...
const HF::UID::UID	uid () const
	Return the UID of the local device on this transport layer. More...
void	uid (HF::UID::UID_T *_uid)
	Set the UID to the given value. More...
void	connected (HF::Transport::Link *link)
	Call the connected method for all the registered end-points with the given link as argument. More...
void	disconnected (HF::Transport::Link *link)
	Call the disconnected method for all the registered end-points with the given link as argument. More...
Commands

Protected Attributes
uv_tcp_t	socket
	libuv tcp/ip socket. More...
Protected Attributes inherited from HF::Devices::Concentrator::Transport
Common::SimpleList< HF::Transport::Link * >	links
	List of links present in the transport layer.
Protected Attributes inherited from HF::Transport::AbstractLayer
Common::SimpleList< HF::Transport::Endpoint * >	endpoints
	List of registered end-points for this layer.
HF::UID::UID_T *	_uid
	UID associated with the local transport layer.

Detailed Description

Transport Layer implementation over TCP/IP using libuv.

Definition at line 41 of file apps/transport.h.

Field Documentation

socket

uv_tcp_t HF::Application::Transport::socket

protected

libuv tcp/ip socket.

Definition at line 45 of file apps/transport.h.

Referenced by initialize().

---

The documentation for this class was generated from the following files:

• apps/transport.h
• transport.cpp
