HF::UID::UID_T Struct Reference

API for all UIDs. More...

#include <uids.h>

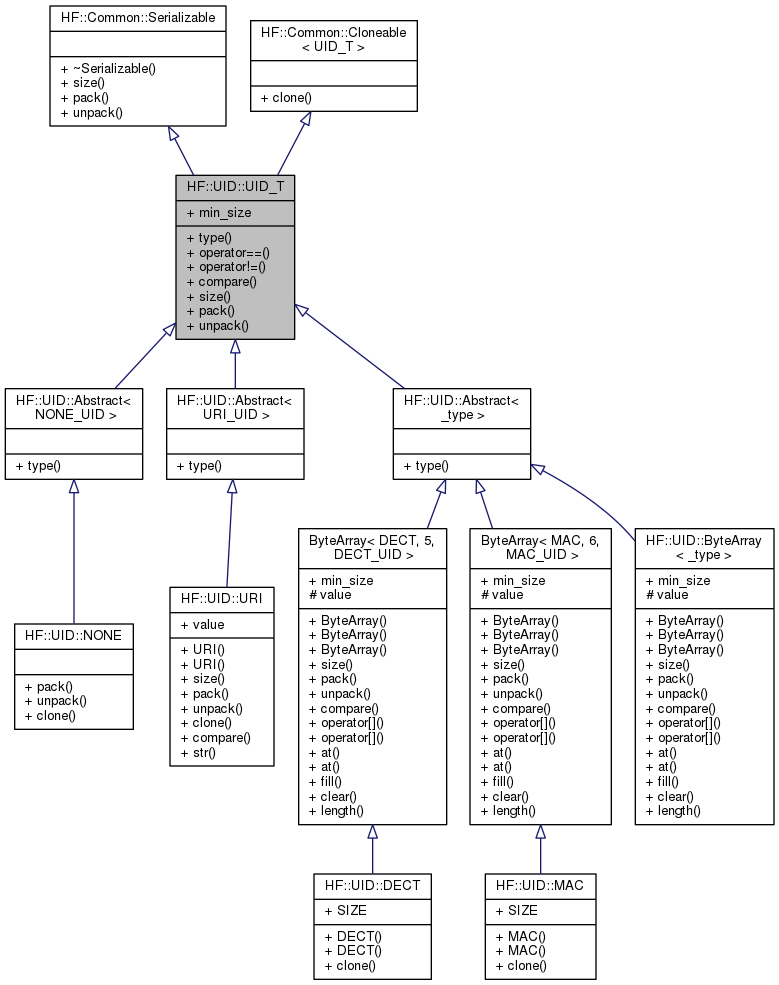

Inheritance diagram for HF::UID::UID_T:

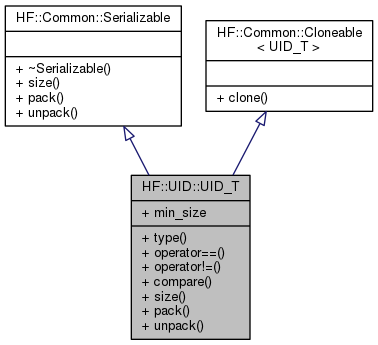

Collaboration diagram for HF::UID::UID_T:

Public Member Functions
virtual uint8_t	type () const =0
	Type of the UID. More...
virtual int	compare (const UID_T &other) const
	Compare the current UID with the given UID. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...
Public Member Functions inherited from HF::Common::Serializable
virtual	~Serializable ()
	Destructor.
Public Member Functions inherited from HF::Common::Cloneable< UID_T >
virtual UID_T *	clone () const=0
	Create a clone object of the object where this method is being called. More...

Static Public Attributes
static constexpr uint16_t	min_size
	Minimum pack/unpack required data size.

Detailed Description

API for all UIDs.

Parent UID class.

Definition at line 55 of file uids.h.

Member Function Documentation

compare()

virtual int HF::UID::UID_T::compare ( const UID_T &  other ) const

inlinevirtual

Compare the current UID with the given UID.

This function returns a value less that 0 if the current UID object order is lower that the given UID, 0 if the UIDs represent the same entity and a value greater that 0 if current UID object is above the given UID.

Parameters

[in]

other

a pointer to a UID object to compare to.

Return values

<0	the current UID is lower that the given UID.
0	the current UID is the same as given UID.
>0	the current UID is greater that the given UID.

Reimplemented in HF::UID::URI, HF::UID::ByteArray< _Class, _size, _type >, HF::UID::ByteArray< DECT, 5, DECT_UID >, and HF::UID::ByteArray< MAC, 6, MAC_UID >.

Definition at line 88 of file uids.h.

References type().

Referenced by HF::UID::ByteArray< MAC, 6, MAC_UID >::compare(), HF::UID::URI::compare(), and HF::UID::UID::compare().

         {
            return (this->type() - other.type());
         }

Here is the call graph for this function:

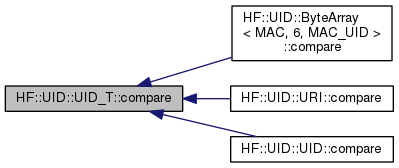

Here is the caller graph for this function:

pack()

uint16_t HF::UID::UID_T::pack ( Common::ByteArray &  array, uint16_t  offset = 0  ) const

inlinevirtual

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

Implements HF::Common::Serializable.

Reimplemented in HF::UID::URI, HF::UID::ByteArray< _Class, _size, _type >, HF::UID::ByteArray< DECT, 5, DECT_UID >, HF::UID::ByteArray< MAC, 6, MAC_UID >, and HF::UID::NONE.

Definition at line 104 of file uids.h.

References HF_SERIALIZABLE_CHECK, min_size, type(), and HF::Common::ByteArray::write().

Referenced by HF::UID::NONE::pack(), HF::UID::ByteArray< MAC, 6, MAC_UID >::pack(), HF::UID::URI::pack(), and HF::UID::UID::pack().

         {
            HF_SERIALIZABLE_CHECK(array, offset, min_size);

            array.write(offset, this->type());

            return sizeof(uint8_t);
         }

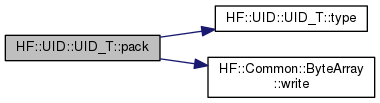

Here is the call graph for this function:

Here is the caller graph for this function:

size()

uint16_t HF::UID::UID_T::size ( ) const

inlinevirtual

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

Implements HF::Common::Serializable.

Reimplemented in HF::UID::URI, HF::UID::ByteArray< _Class, _size, _type >, HF::UID::ByteArray< DECT, 5, DECT_UID >, and HF::UID::ByteArray< MAC, 6, MAC_UID >.

Definition at line 98 of file uids.h.

References min_size.

Referenced by HF::UID::URI::size(), HF::UID::UID::size(), and HF::UID::NONE::unpack().

         {
            return min_size;
         }

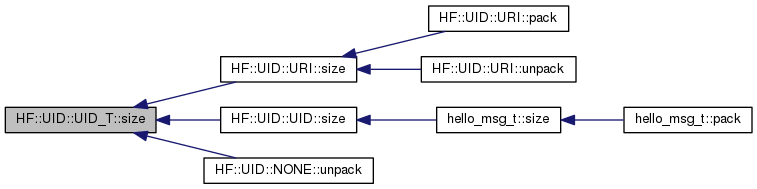

Here is the caller graph for this function:

type()

virtual uint8_t HF::UID::UID_T::type ( ) const

pure virtual

Type of the UID.

See also

HF::UID::Type.

Returns

type of the UID.

Implemented in HF::UID::Abstract< _type >, HF::UID::Abstract< URI_UID >, and HF::UID::Abstract< NONE_UID >.

Referenced by compare(), pack(), HF::UID::UID::type(), and unpack().

Here is the caller graph for this function:

unpack()

uint16_t HF::UID::UID_T::unpack ( const Common::ByteArray &  array, uint16_t  offset = 0  )

inlinevirtual

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

Implements HF::Common::Serializable.

Reimplemented in HF::UID::URI, HF::UID::ByteArray< _Class, _size, _type >, HF::UID::ByteArray< DECT, 5, DECT_UID >, HF::UID::ByteArray< MAC, 6, MAC_UID >, and HF::UID::NONE.

Definition at line 114 of file uids.h.

References HF_SERIALIZABLE_CHECK, min_size, HF::Common::ByteArray::read(), and type().

Referenced by HF::UID::NONE::unpack(), HF::UID::ByteArray< MAC, 6, MAC_UID >::unpack(), and HF::UID::URI::unpack().

         {
            HF_SERIALIZABLE_CHECK(array, offset, min_size);

            uint8_t type;
            array.read(offset, type);

            assert((type & (~0x80)) == this->type());

            return sizeof(uint8_t);
         }

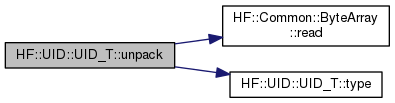

Here is the call graph for this function:

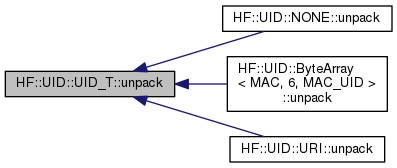

Here is the caller graph for this function:

---

The documentation for this struct was generated from the following file:

• uids.h
