HF::UID::URI Struct Reference

URI UID class. More...

#include <uids.h>

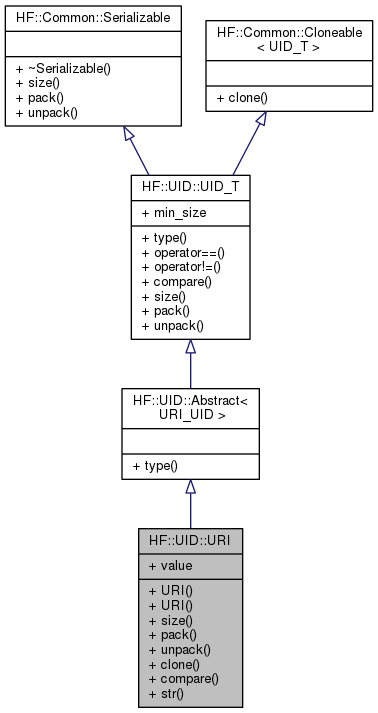

Inheritance diagram for HF::UID::URI:

Collaboration diagram for HF::UID::URI:

Public Member Functions
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...
URI *	clone () const
	Create a clone object of the object where this method is being called. More...
int	compare (const UID_T &other) const
	Compare the current UID with the given UID. More...
std::string	str () const
	Return the string value associated with this URI. More...
Public Member Functions inherited from HF::Common::Serializable
virtual	~Serializable ()
	Destructor.

Additional Inherited Members
Static Public Attributes inherited from HF::UID::UID_T
static constexpr uint16_t	min_size
	Minimum pack/unpack required data size.

Detailed Description

URI UID class.

Definition at line 431 of file uids.h.

Member Function Documentation

clone()

URI* HF::UID::URI::clone ( ) const

inlinevirtual

Create a clone object of the object where this method is being called.

Returns

a new object that is a clone of this object.

Implements HF::Common::Cloneable< UID_T >.

Definition at line 495 of file uids.h.

         {
            return new URI(*this);
         }

compare()

int HF::UID::URI::compare ( const UID_T &  other ) const

inlinevirtual

Compare the current UID with the given UID.

This function returns a value less that 0 if the current UID object order is lower that the given UID, 0 if the UIDs represent the same entity and a value greater that 0 if current UID object is above the given UID.

Parameters

[in]

other

a pointer to a UID object to compare to.

Return values

<0	the current UID is lower that the given UID.
0	the current UID is the same as given UID.
>0	the current UID is greater that the given UID.

Reimplemented from HF::UID::UID_T.

Definition at line 504 of file uids.h.

References HF::UID::UID_T::compare().

         {
            int res = Abstract<URI_UID>::compare(other);

            return (res == 0 ? value.compare(((URI *) &other)->value) : res);
         }

Here is the call graph for this function:

pack()

uint16_t HF::UID::URI::pack ( Common::ByteArray &  array, uint16_t  offset = 0  ) const

inlinevirtual

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

Reimplemented from HF::UID::UID_T.

Definition at line 447 of file uids.h.

References HF_SERIALIZABLE_CHECK, HF::UID::UID_T::pack(), size(), and HF::Common::ByteArray::write().

         {
            HF_SERIALIZABLE_CHECK(array, offset, size());

            uint16_t start = offset;

            offset += Abstract<URI_UID>::pack(array, offset);

            assert(value.size() <= 0xFF);
            offset += array.write(offset, (uint8_t) value.size());

            for (uint8_t i = 0; i < value.size(); i++)
            {
               offset += array.write(offset, (uint8_t) value[i]);
            }

            return offset - start;
         }

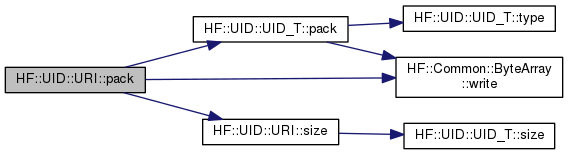

Here is the call graph for this function:

size()

uint16_t HF::UID::URI::size ( ) const

inlinevirtual

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

Reimplemented from HF::UID::UID_T.

Definition at line 442 of file uids.h.

References HF::UID::UID_T::size().

Referenced by pack(), and unpack().

         {
            return Abstract<URI_UID>::size() + value.size();
         }

Here is the call graph for this function:

Here is the caller graph for this function:

str()

std::string HF::UID::URI::str ( ) const

inline

Return the string value associated with this URI.

Returns

the string associated with this URI.

Definition at line 516 of file uids.h.

         {
            return value;
         }

unpack()

uint16_t HF::UID::URI::unpack ( const Common::ByteArray &  array, uint16_t  offset = 0  )

inlinevirtual

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

Reimplemented from HF::UID::UID_T.

Definition at line 466 of file uids.h.

References HF_SERIALIZABLE_CHECK, HF::UID::UID_T::min_size, HF::Common::ByteArray::read(), size(), and HF::UID::UID_T::unpack().

         {
            HF_SERIALIZABLE_CHECK(array, offset, min_size);

            uint16_t start = offset;

            offset += Abstract<URI_UID>::unpack(array, offset);

            uint8_t size;
            offset += array.read(offset, size);

            HF_SERIALIZABLE_CHECK(array, offset, size);

            value = std::string(size, 0);

            for (uint8_t i = 0; i < size; i++)
            {
               uint8_t c;
               offset  += array.read(offset, c);
               value[i] = c;
            }

            return offset - start;
         }

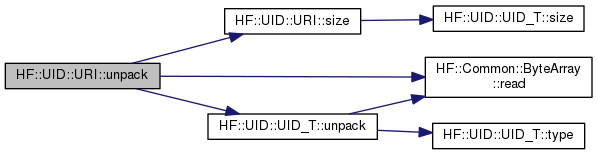

Here is the call graph for this function:

---

The documentation for this struct was generated from the following file:

• uids.h
