HF::Devices::Concentrator::Transport Class Reference

Parent class for transport layer implementations on a HAN-FUN Concentrator device. More...

#include <devices.h>

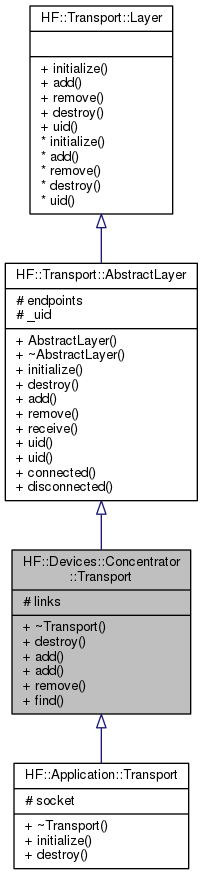

Inheritance diagram for HF::Devices::Concentrator::Transport:

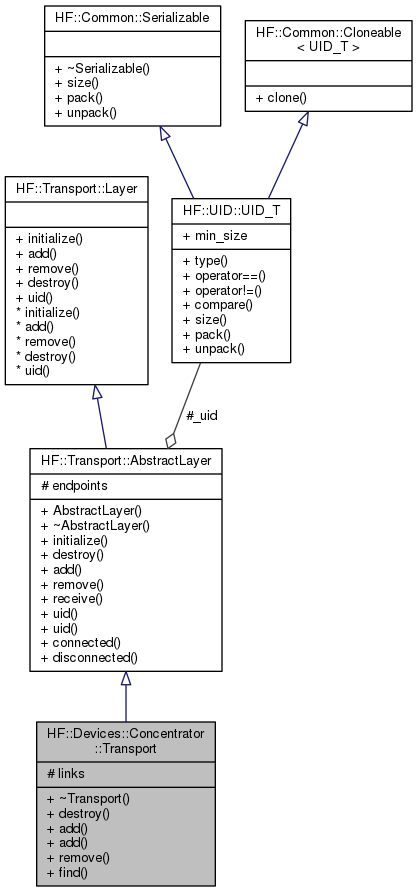

Collaboration diagram for HF::Devices::Concentrator::Transport:

Public Member Functions
void	destroy ()
	Free the system resources associated with this transport layer.
void	add (HF::Transport::Endpoint *ep)
	Register the given Endpoint to receive events. More...
void	add (HF::Transport::Link *link)
	Add the given link to the list of known links and call the connected method for all registered end-points. More...
void	remove (HF::Transport::Link *link=nullptr)
	Call the disconnected method for all registered end-points with the given link and remove it from list of known links. More...
HF::Transport::Link *	find (uint16_t address)
	Find the link used to send messages to the HAN-FUN device with the given address. More...
Public Member Functions inherited from HF::Transport::AbstractLayer
void	initialize ()
	Initialize the associated transport layer. More...
void	destroy ()
	Free the system resources associated with this transport layer.
void	add (HF::Transport::Endpoint *ep)
	Add an entry to the list of end-points connected to the transport layer. More...
void	remove (HF::Transport::Endpoint *ep=nullptr)
	Remove the entry in ep, from the list of end-points connected to the transport layer. More...
void	receive (HF::Transport::Link *link, HF::Common::ByteArray &payload)
	Receive the data in payload, coming in in the given link and deliver the decoded packet to all registered end-points. More...
const HF::UID::UID	uid () const
	Return the UID of the local device on this transport layer. More...
void	uid (HF::UID::UID_T *_uid)
	Set the UID to the given value. More...
void	connected (HF::Transport::Link *link)
	Call the connected method for all the registered end-points with the given link as argument. More...
void	disconnected (HF::Transport::Link *link)
	Call the disconnected method for all the registered end-points with the given link as argument. More...
Commands

Protected Attributes
Common::SimpleList< HF::Transport::Link * >	links
	List of links present in the transport layer.
Protected Attributes inherited from HF::Transport::AbstractLayer
Common::SimpleList< HF::Transport::Endpoint * >	endpoints
	List of registered end-points for this layer.
HF::UID::UID_T *	_uid
	UID associated with the local transport layer.

Detailed Description

Parent class for transport layer implementations on a HAN-FUN Concentrator device.

Definition at line 929 of file devices.h.

Member Function Documentation

add() [1/2]

void HF::Devices::Concentrator::Transport::add ( HF::Transport::Endpoint *  ep )

inlinevirtual

Register the given Endpoint to receive events.

This should be possible to register multiple end-points, to the transport layer.

Parameters

[in]

ep

pointer to the end-point to register in the transport layer.

Implements HF::Transport::Layer.

Definition at line 945 of file devices.h.

References HF::Transport::AbstractLayer::add(), HF::Transport::Endpoint::connected(), and links.

            {
               HF::Transport::AbstractLayer::add(ep);
               /* *INDENT-OFF* */
               std::for_each(links.begin(), links.end(), [ep](HF::Transport::Link *link)
               {
                  ep->connected (link);
               });
               /* *INDENT-ON* */
            }

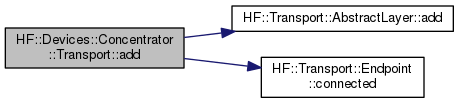

Here is the call graph for this function:

add() [2/2]

void HF::Devices::Concentrator::Transport::add ( HF::Transport::Link *  link )

inline

Add the given link to the list of known links and call the connected method for all registered end-points.

Parameters

[in]

link

pointer to the link to add.

Definition at line 962 of file devices.h.

References HF::Transport::AbstractLayer::connected(), and links.

            {
               assert(link != nullptr);

               links.push_front(link);
               HF::Transport::AbstractLayer::connected(link);
            }

Here is the call graph for this function:

find()

HF::Transport::Link* HF::Devices::Concentrator::Transport::find

(

uint16_t

address

)

Find the link used to send messages to the HAN-FUN device with the given address.

Parameters

[in]

address

the HAN-FUN address to find the link for.

Returns

a pointer to the link for the given address or nullptr if no link exists for the given address.

remove()

void HF::Devices::Concentrator::Transport::remove

(

HF::Transport::Link *

link = nullptr

)

Call the disconnected method for all registered end-points with the given link and remove it from list of known links.

If link is nullptr, then remove all known links.

Parameters

[in]

link

pointer to the link to remove.

---

The documentation for this class was generated from the following file:

• devices.h
