HF::Transport::AbstractLayer Class Reference

Parent class for all HF::Transport::Layer implementations. More...

#include <transport.h>

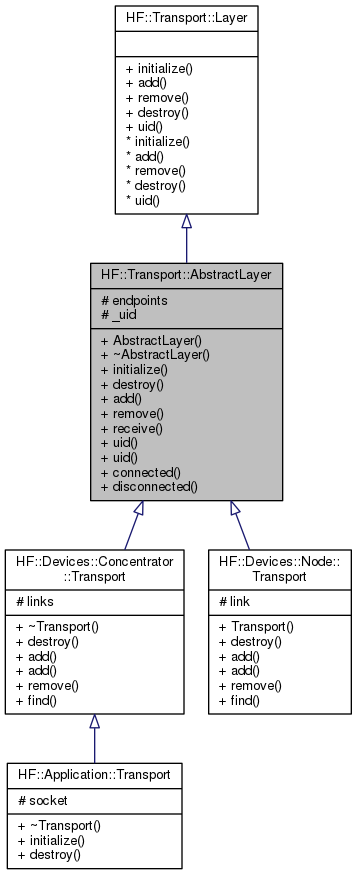

Inheritance diagram for HF::Transport::AbstractLayer:

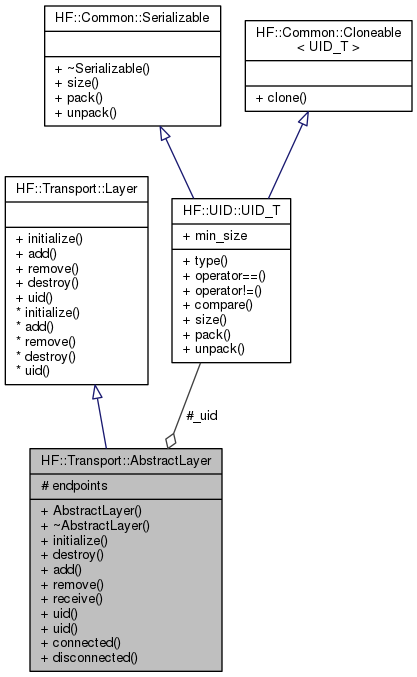

Collaboration diagram for HF::Transport::AbstractLayer:

Public Member Functions
void	initialize ()
	Initialize the associated transport layer. More...
void	destroy ()
	Free the system resources associated with this transport layer.
void	add (HF::Transport::Endpoint *ep)
	Add an entry to the list of end-points connected to the transport layer. More...
void	remove (HF::Transport::Endpoint *ep=nullptr)
	Remove the entry in ep, from the list of end-points connected to the transport layer. More...
void	receive (HF::Transport::Link *link, HF::Common::ByteArray &payload)
	Receive the data in payload, coming in in the given link and deliver the decoded packet to all registered end-points. More...
const HF::UID::UID	uid () const
	Return the UID of the local device on this transport layer. More...
void	uid (HF::UID::UID_T *_uid)
	Set the UID to the given value. More...
void	connected (HF::Transport::Link *link)
	Call the connected method for all the registered end-points with the given link as argument. More...
void	disconnected (HF::Transport::Link *link)
	Call the disconnected method for all the registered end-points with the given link as argument. More...
Commands

Protected Attributes
Common::SimpleList< HF::Transport::Endpoint * >	endpoints
	List of registered end-points for this layer.
HF::UID::UID_T *	_uid
	UID associated with the local transport layer.

Detailed Description

Parent class for all HF::Transport::Layer implementations.

Definition at line 239 of file inc/hanfun/transport.h.

Member Function Documentation

add()

void HF::Transport::AbstractLayer::add ( HF::Transport::Endpoint *  ep )

inlinevirtual

Add an entry to the list of end-points connected to the transport layer.

Parameters

[in]

ep

pointer to the end-point to add.

Implements HF::Transport::Layer.

Definition at line 268 of file inc/hanfun/transport.h.

References endpoints.

Referenced by HF::Devices::Node::Transport::add(), and HF::Devices::Concentrator::Transport::add().

         {
            assert(ep != nullptr);
            endpoints.push_front(ep);
         }

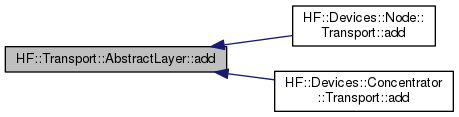

Here is the caller graph for this function:

connected()

void HF::Transport::AbstractLayer::connected ( HF::Transport::Link *  link )

inline

Call the connected method for all the registered end-points with the given link as argument.

Parameters

[in]

link

pointer to the link to call the connected method with.

Definition at line 342 of file inc/hanfun/transport.h.

References endpoints.

Referenced by HF::Devices::Node::Transport::add(), and HF::Devices::Concentrator::Transport::add().

         {
            assert(link != nullptr);

            /* *INDENT-OFF* */
            std::for_each (endpoints.begin (), endpoints.end (),
                  [link](HF::Transport::Endpoint *ep)
                  {
                     ep->connected (link);
                  });
            /* *INDENT-ON* */
         }

Here is the caller graph for this function:

disconnected()

void HF::Transport::AbstractLayer::disconnected ( HF::Transport::Link *  link )

inline

Call the disconnected method for all the registered end-points with the given link as argument.

Parameters

[in]

link

pointer to the link to call the disconnected method with.

Definition at line 361 of file inc/hanfun/transport.h.

References endpoints.

Referenced by HF::Devices::Node::Transport::remove().

         {
            assert(link != nullptr);

            /* *INDENT-OFF* */
            std::for_each (endpoints.begin (), endpoints.end (),
                  [link](HF::Transport::Endpoint *ep)
                  {
                     ep->disconnected (link);
                  });
            /* *INDENT-ON* */
         }

Here is the caller graph for this function:

initialize()

void HF::Transport::AbstractLayer::initialize ( )

inlinevirtual

Initialize the associated transport layer.

This method should initialize the transport layer using it's default values.

Implements HF::Transport::Layer.

Reimplemented in HF::Application::Transport.

Definition at line 259 of file inc/hanfun/transport.h.

{}

receive()

void HF::Transport::AbstractLayer::receive ( HF::Transport::Link *  link, HF::Common::ByteArray &  payload  )

inline

Receive the data in payload, coming in in the given link and deliver the decoded packet to all registered end-points.

Parameters

[in]	link	pointer to the link the incoming data was received.
[in]	payload	reference to the ByteArray containing the data received.

Definition at line 302 of file inc/hanfun/transport.h.

References endpoints, HF::Protocol::Packet::link, and HF::Protocol::Packet::unpack().

         {
            assert(link != nullptr);
            Protocol::Packet *packet = new Protocol::Packet();
            packet->link = link;

            uint16_t offset = packet->unpack(payload);

            /* *INDENT-OFF* */
            std::for_each (endpoints.begin (), endpoints.end (),
                  [&packet, &payload, &offset](HF::Transport::Endpoint *ep)
                  {
                     ep->receive (*packet, payload, offset);
                  });
            /* *INDENT-ON* */

            delete packet;
         }

Here is the call graph for this function:

remove()

void HF::Transport::AbstractLayer::remove ( HF::Transport::Endpoint *  ep = nullptr )

inlinevirtual

Remove the entry in ep, from the list of end-points connected to the transport layer.

If ep is equal to nullptr then all end-points are removed.

Parameters

[in]

ep

pointer to the end-point entry to remove or nullptr to remove all entries.

Implements HF::Transport::Layer.

Definition at line 283 of file inc/hanfun/transport.h.

References endpoints.

         {
            if (ep != nullptr)
            {
               endpoints.remove(ep);
            }
            else
            {
               endpoints.clear();
            }
         }

uid() [1/2]

const HF::UID::UID HF::Transport::AbstractLayer::uid ( ) const

inlinevirtual

Return the UID of the local device on this transport layer.

For example on an ULE device this would return the IPUI of the device.

Returns

the UID of the local device on this transport layer.

Implements HF::Transport::Layer.

Definition at line 321 of file inc/hanfun/transport.h.

References _uid.

         {
            return HF::UID::UID(_uid);
         }

uid() [2/2]

void HF::Transport::AbstractLayer::uid ( HF::UID::UID_T *  _uid )

inline

Set the UID to the given value.

Parameters

[in]

_uid

pointer to the UID to use.

Definition at line 331 of file inc/hanfun/transport.h.

References _uid.

         {
            this->_uid = _uid;
         }

---

The documentation for this class was generated from the following file:

• inc/hanfun/transport.h
