HF::Core::Scheduling::Weekly::IServer Struct Reference

Scheduling Service : Server side implementation. More...

#include <weekly_scheduling.h>

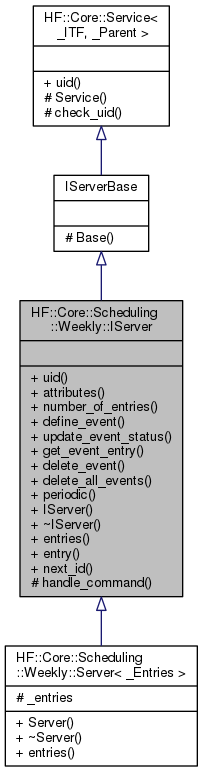

Inheritance diagram for HF::Core::Scheduling::Weekly::IServer:

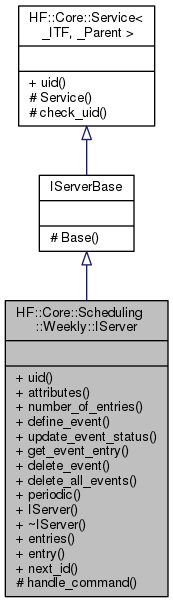

Collaboration diagram for HF::Core::Scheduling::Weekly::IServer:

Public Member Functions
virtual Common::Result	define_event (const Protocol::Packet &packet, Scheduling::Entry< Day > &msg)
	Callback that is called when a Scheduling::DEFINE_EVENT_CMD, is received. More...
virtual Common::Result	update_event_status (const Protocol::Packet &packet, const UpdateStatus &msg)
	Callback that is called when a Scheduling::UPDATE_STATUS_CMD, is received. More...
virtual Common::Result	get_event_entry (const Protocol::Packet &packet, const GetEntry &msg)
	Callback that is called when a Scheduling::GET_ENTRY_CMD, is received. More...
virtual Common::Result	delete_event (const Protocol::Packet &packet, const DeleteEvent &msg)
	Callback that is called when a Scheduling::DELETE_CMD, is received. More...
virtual Common::Result	delete_all_events (const Protocol::Packet &packet)
	Callback that is called when a Scheduling::DELETE_ALL_CMD, is received. More...
	IServer (Unit0 &unit)
	Constructor.
virtual	~IServer ()
	Destructor.
virtual IEntries< Day > &	entries () const =0
	Get a reference to the current object implementing the persistence API, for the device information. More...
Common::Pointer< Entry >	entry (const uint8_t id) const
	Get the Weekly Scheduling entry given by id. More...
uint8_t	next_id () const
	Return next available id for event. More...
Public Member Functions inherited from HF::Core::Service< _ITF, _Parent >
uint16_t	uid () const
	This method returns the interface UID. More...

Additional Inherited Members
Protected Member Functions inherited from HF::Core::Scheduling::Base< _ITF, _Parent >
	Base (Unit0 &unit)
	Constructor.
Protected Member Functions inherited from HF::Core::Service< _ITF, _Parent >
	Service (Unit0 &unit)
	Constructor. More...
bool	check_uid (uint16_t uid) const
	Check if the given uid value matches the service's UID value. More...

Detailed Description

Scheduling Service : Server side implementation.

This class provides the server side of the Scheduling interface.

Definition at line 363 of file weekly_scheduling.h.

Member Function Documentation

define_event()

virtual Common::Result HF::Core::Scheduling::Weekly::IServer::define_event ( const Protocol::Packet &  packet, Scheduling::Entry< Day > &  msg  )

virtual

Callback that is called when a Scheduling::DEFINE_EVENT_CMD, is received.

Parameters

[in]	packet	the packet received.
[in]	msg	the define event message received.

Return values

Common::Result::OK	if the entry was created;
Common::Result::FAIL_ARG	if the entry ID already exists;
Common::Result::FAIL_RESOURCES	if the entry could not be created;
Common::Result::FAIL_UNKNOWN	otherwise.

delete_all_events()

virtual Common::Result HF::Core::Scheduling::Weekly::IServer::delete_all_events ( const Protocol::Packet &  packet )

virtual

Callback that is called when a Scheduling::DELETE_ALL_CMD, is received.

Parameters

[in]

packet

the packet received.

Return values

Common::Result::OK

delete_event()

virtual Common::Result HF::Core::Scheduling::Weekly::IServer::delete_event ( const Protocol::Packet &  packet, const DeleteEvent &  msg  )

virtual

Callback that is called when a Scheduling::DELETE_CMD, is received.

Parameters

[in]	packet	the packet received.
[in]	msg	the delete event message received.

Return values

Common::Result::OK	if the entry was deleted,
Common::Result::FAIL_ARG	otherwise.

entries()

virtual IEntries<Day>& HF::Core::Scheduling::Weekly::IServer::entries ( ) const

pure virtual

Get a reference to the current object implementing the persistence API, for the device information.

Returns

reference to the current object for the persistence API.

Implemented in HF::Core::Scheduling::Weekly::Server< _Entries >.

Referenced by entry(), and next_id().

Here is the caller graph for this function:

entry()

Common::Pointer<Entry> HF::Core::Scheduling::Weekly::IServer::entry ( const uint8_t  id ) const

inline

Get the Weekly Scheduling entry given by id.

Parameters

[in]

id

event id of the event to retrieve.

Return values

pointer	to the event entry if it exists,
nullptr	otherwise.

Definition at line 470 of file weekly_scheduling.h.

References entries().

               {
                  return entries().find(id);
               }

Here is the call graph for this function:

get_event_entry()

virtual Common::Result HF::Core::Scheduling::Weekly::IServer::get_event_entry ( const Protocol::Packet &  packet, const GetEntry &  msg  )

virtual

Callback that is called when a Scheduling::GET_ENTRY_CMD, is received.

Parameters

[in]	packet	the packet received.
[in]	msg	the get event message received.

Return values

Common::Result::OK	if the entry exists,
Common::Result::FAIL_ARG	otherwise.

next_id()

uint8_t HF::Core::Scheduling::Weekly::IServer::next_id ( ) const

inline

Return next available id for event.

Returns

the id to use in the next event, or Scheduler::Entry::AVAILABLE_ID if no id is available.

Definition at line 478 of file weekly_scheduling.h.

References entries().

               {
                  return entries().next_id();
               }

Here is the call graph for this function:

update_event_status()

virtual Common::Result HF::Core::Scheduling::Weekly::IServer::update_event_status ( const Protocol::Packet &  packet, const UpdateStatus &  msg  )

virtual

Callback that is called when a Scheduling::UPDATE_STATUS_CMD, is received.

Parameters

[in]	packet	the packet received.
[in]	msg	the update event status message received.

Return values

Common::Result::OK	if the entry was updated;
Common::Result::FAIL_ARG	if the entry does not exists;

---

The documentation for this struct was generated from the following file:

• weekly_scheduling.h
