HF::Core::Scheduling::Weekly::Day Struct Reference

Specific part for the Weekly Scheduler of the HF::Scheduling::Entry. More...

#include <weekly_scheduling.h>

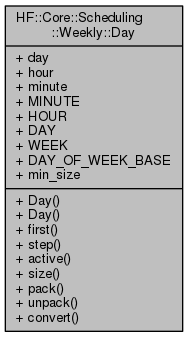

Collaboration diagram for HF::Core::Scheduling::Weekly::Day:

Public Member Functions
uint32_t	first (uint32_t timestamp=0) const
	Get the initial value for the next_run entry attribute. More...
uint32_t	step () const
	Get the step between executions. More...
bool	active (uint32_t _time) const
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

Data Fields
uint8_t	day
	Day of Week. More...
uint8_t	hour
	Hour of Day. More...
uint8_t	minute
	Minute of Hour. More...

Static Public Attributes
static constexpr uint16_t	min_size
	Minimum pack/unpack required data size.

Detailed Description

Specific part for the Weekly Scheduler of the HF::Scheduling::Entry.

Definition at line 83 of file weekly_scheduling.h.

Member Function Documentation

active()

bool HF::Core::Scheduling::Weekly::Day::active ( uint32_t  _time ) const

inline

Parameters

_time

Returns

Definition at line 164 of file weekly_scheduling.h.

References UNUSED.

               {
                  UNUSED(_time);
                  return true;
               }

first()

uint32_t HF::Core::Scheduling::Weekly::Day::first ( uint32_t  timestamp = 0 ) const

inline

Get the initial value for the next_run entry attribute.

Parameters

[in]

timestamp

the current system time.

Returns

the timestamp for the first run.

Definition at line 130 of file weekly_scheduling.h.

References day, hour, and minute.

               {
                  uint32_t result = timestamp;

                  Day current(convert(timestamp));

                  result += (this->hour - current.hour) * 60 * 60;
                  result += (this->minute - current.minute) * 60;

                  result += (this->day - current.day) * 24 * 60 * 60;

                  if (timestamp > result)
                  {
                     result += WEEK;
                  }

                  return result;
               }

pack()

uint16_t HF::Core::Scheduling::Weekly::Day::pack	(	Common::ByteArray &	array,
		uint16_t	offset = 0
	)		const

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

size()

uint16_t HF::Core::Scheduling::Weekly::Day::size ( ) const

inline

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

Definition at line 176 of file weekly_scheduling.h.

References min_size.

               {
                  return min_size;
               }

step()

uint32_t HF::Core::Scheduling::Weekly::Day::step ( void  ) const

inline

Get the step between executions.

Returns

the step time.

Definition at line 154 of file weekly_scheduling.h.

               {
                  return WEEK;
               }

unpack()

uint16_t HF::Core::Scheduling::Weekly::Day::unpack	(	const Common::ByteArray &	array,
		uint16_t	offset = 0
	)

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

Field Documentation

day

uint8_t HF::Core::Scheduling::Weekly::Day::day

Day of Week.

Definition at line 85 of file weekly_scheduling.h.

Referenced by first().

hour

uint8_t HF::Core::Scheduling::Weekly::Day::hour

Hour of Day.

Definition at line 86 of file weekly_scheduling.h.

Referenced by first().

minute

uint8_t HF::Core::Scheduling::Weekly::Day::minute

Minute of Hour.

Definition at line 87 of file weekly_scheduling.h.

Referenced by first().

---

The documentation for this struct was generated from the following file:

• weekly_scheduling.h
