HF::Devices::Node::Transport Class Reference

Parent class for transport layer implementations on a HAN-FUN Node. More...

#include <devices.h>

Inheritance diagram for HF::Devices::Node::Transport:

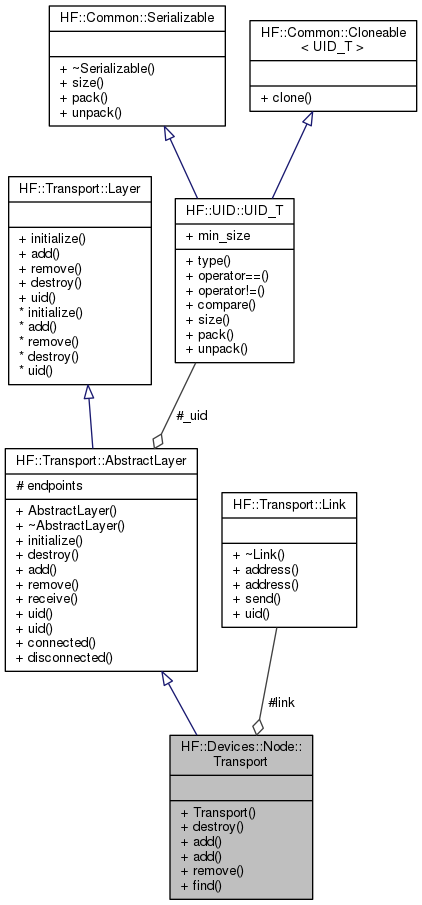

Collaboration diagram for HF::Devices::Node::Transport:

Public Member Functions
void	destroy ()
	Free the system resources associated with this transport layer.
void	add (HF::Transport::Endpoint *ep)
	Register the given Endpoint to receive events. More...
void	add (HF::Transport::Link *_link)
	Add the given link to the list of known links and call the connected method for all registered end-points. More...
void	remove (HF::Transport::Link *_link=nullptr)
	Call the disconnected method for all registered end-points with the given _link and remove it from list of known links. More...
HF::Transport::Link *	find (uint16_t address)
	Find the link used to send messages to the HAN-FUN device with the given address. More...
Public Member Functions inherited from HF::Transport::AbstractLayer
void	initialize ()
	Initialize the associated transport layer. More...
void	destroy ()
	Free the system resources associated with this transport layer.
void	add (HF::Transport::Endpoint *ep)
	Add an entry to the list of end-points connected to the transport layer. More...
void	remove (HF::Transport::Endpoint *ep=nullptr)
	Remove the entry in ep, from the list of end-points connected to the transport layer. More...
void	receive (HF::Transport::Link *link, HF::Common::ByteArray &payload)
	Receive the data in payload, coming in in the given link and deliver the decoded packet to all registered end-points. More...
const HF::UID::UID	uid () const
	Return the UID of the local device on this transport layer. More...
void	uid (HF::UID::UID_T *_uid)
	Set the UID to the given value. More...
void	connected (HF::Transport::Link *link)
	Call the connected method for all the registered end-points with the given link as argument. More...
void	disconnected (HF::Transport::Link *link)
	Call the disconnected method for all the registered end-points with the given link as argument. More...
Commands

Protected Attributes
HF::Transport::Link *	link
	Pointer to the link used to send packets to the network.
Protected Attributes inherited from HF::Transport::AbstractLayer
Common::SimpleList< HF::Transport::Endpoint * >	endpoints
	List of registered end-points for this layer.
HF::UID::UID_T *	_uid
	UID associated with the local transport layer.

Detailed Description

Parent class for transport layer implementations on a HAN-FUN Node.

Definition at line 506 of file devices.h.

Member Function Documentation

add() [1/2]

void HF::Devices::Node::Transport::add ( HF::Transport::Endpoint *  ep )

inlinevirtual

Register the given Endpoint to receive events.

This should be possible to register multiple end-points, to the transport layer.

Parameters

[in]

ep

pointer to the end-point to register in the transport layer.

Implements HF::Transport::Layer.

Definition at line 524 of file devices.h.

References HF::Transport::AbstractLayer::add(), HF::Transport::Endpoint::connected(), and link.

            {
               HF::Transport::AbstractLayer::add(ep);

               if (link != nullptr)
               {
                  ep->connected(link);
               }
            }

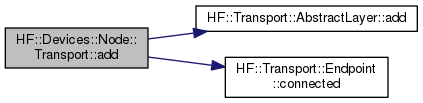

Here is the call graph for this function:

add() [2/2]

void HF::Devices::Node::Transport::add ( HF::Transport::Link *  _link )

inline

Add the given link to the list of known links and call the connected method for all registered end-points.

Parameters

[in]

_link

pointer to the link to add.

Definition at line 540 of file devices.h.

References HF::Transport::AbstractLayer::connected().

            {
               assert(_link != nullptr);

               this->link = _link;
               HF::Transport::AbstractLayer::connected(_link);
            }

Here is the call graph for this function:

find()

HF::Transport::Link* HF::Devices::Node::Transport::find ( uint16_t  address )

inline

Find the link used to send messages to the HAN-FUN device with the given address.

Note

in the nodes there is only one link as all messages are sent to the base.

Parameters

[in]

address

the HAN-FUN address to find the link for.

Returns

a pointer to the link for the given address or nullptr if no link exists for the given address.

Definition at line 579 of file devices.h.

References link, and UNUSED.

            {
               UNUSED(address);
               return link;
            }

remove()

void HF::Devices::Node::Transport::remove ( HF::Transport::Link *  _link = nullptr )

inline

Call the disconnected method for all registered end-points with the given _link and remove it from list of known links.

If _link is nullptr, then remove all known links.

Parameters

[in]

_link

pointer to the link to remove.

Definition at line 556 of file devices.h.

References HF::Transport::AbstractLayer::disconnected(), and link.

            {
               if ((_link == nullptr && this->link != nullptr) || (_link == this->link))
               {
                  HF::Transport::AbstractLayer::disconnected(this->link);
                  delete this->link;
                  this->link = nullptr;
               }
            }

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• devices.h
