HF::Core::SUOTA::CheckVersionResponse Struct Reference

This class represents the message for the response of a SUOTA::CHECK_VERSION_CMD. More...

#include <suota.h>

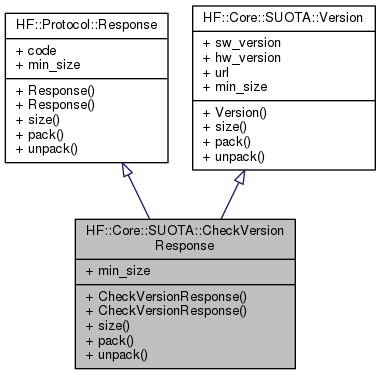

Inheritance diagram for HF::Core::SUOTA::CheckVersionResponse:

Collaboration diagram for HF::Core::SUOTA::CheckVersionResponse:

Public Types
enum	Status { VERSION_AVAILABLE = 0x00, NO_VERSION_AVAILABLE = 0x11, FAIL_INFRASTUCTURE = 0x12, FAIL_UNKNOWN = Common::FAIL_UNKNOWN }
	Possible result codes for a SUOTA::CHECK_VERSION_CMD. More...

Public Member Functions
	CheckVersionResponse (Status _status=FAIL_UNKNOWN, const std::string _sw_version="", const std::string _hw_version="", const std::string _url="")
	Constructor. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...
Public Member Functions inherited from HF::Protocol::Response
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...
Public Member Functions inherited from HF::Core::SUOTA::Version
	Version (const std::string _sw_version="", const std::string _hw_version="", const std::string _url="")
	Constructor. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

Static Public Attributes
static constexpr uint16_t	min_size = Protocol::Response::min_size + Version::min_size
	Minimum pack/unpack required data size.
Static Public Attributes inherited from HF::Protocol::Response
static constexpr uint16_t	min_size = sizeof(uint8_t)
	Minimum number of bytes required by this message.
Static Public Attributes inherited from HF::Core::SUOTA::Version
static constexpr uint16_t	min_size = 2 * sizeof(uint8_t)
	Minimum pack/unpack required data size.

Additional Inherited Members
Data Fields inherited from HF::Core::SUOTA::Version
std::string	sw_version
	Current/Available software version. More...
std::string	hw_version
	Current/Minimum required hardware version. More...
std::string	url
	Update URL. More...

Detailed Description

This class represents the message for the response of a SUOTA::CHECK_VERSION_CMD.

Definition at line 127 of file suota.h.

Member Enumeration Documentation

Status

enum HF::Core::SUOTA::CheckVersionResponse::Status

Possible result codes for a SUOTA::CHECK_VERSION_CMD.

Enumerator
VERSION_AVAILABLE	New version available.
NO_VERSION_AVAILABLE	No newer version available.
FAIL_INFRASTUCTURE	Server or Network are down.
FAIL_UNKNOWN	Fail: Unknown Error.

Definition at line 132 of file suota.h.

            {
               VERSION_AVAILABLE    = 0x00,
               NO_VERSION_AVAILABLE = 0x11,
               FAIL_INFRASTUCTURE   = 0x12,
               FAIL_UNKNOWN         = Common::FAIL_UNKNOWN,
            } Status;

Constructor & Destructor Documentation

CheckVersionResponse()

HF::Core::SUOTA::CheckVersionResponse::CheckVersionResponse ( Status  _status = FAIL_UNKNOWN, const std::string  _sw_version = "", const std::string  _hw_version = "", const std::string  _url = ""  )

inline

Constructor.

Parameters

[in]	_status	response status to send (M)
[in]	_sw_version	software version to send (M)
[in]	_hw_version	hardware version to send (M)
[in]	_url	update URL (O)

Definition at line 148 of file suota.h.

                                                                                             :
               Protocol::Response(_status),
               Version(_sw_version, _hw_version, _url) {}

Member Function Documentation

pack()

uint16_t HF::Core::SUOTA::CheckVersionResponse::pack ( Common::ByteArray &  array, uint16_t  offset = 0  ) const

inline

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

Definition at line 166 of file suota.h.

References HF_SERIALIZABLE_CHECK, HF::Core::SUOTA::Version::pack(), HF::Protocol::Response::pack(), and size().

            {
               HF_SERIALIZABLE_CHECK(array, offset, size());

               uint16_t start = offset;

               offset += Protocol::Response::pack(array, offset);
               offset += Version::pack(array, offset);

               return offset - start;
            }

Here is the call graph for this function:

size()

uint16_t HF::Core::SUOTA::CheckVersionResponse::size ( ) const

inline

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

Definition at line 160 of file suota.h.

References HF::Core::SUOTA::Version::size(), and HF::Protocol::Response::size().

Referenced by pack(), and unpack().

            {
               return Protocol::Response::size() + Version::size();
            }

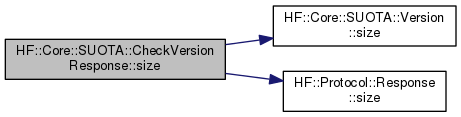

Here is the call graph for this function:

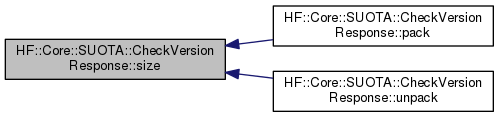

Here is the caller graph for this function:

unpack()

uint16_t HF::Core::SUOTA::CheckVersionResponse::unpack ( const Common::ByteArray &  array, uint16_t  offset = 0  )

inline

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

Definition at line 179 of file suota.h.

References HF_ASSERT, HF_SERIALIZABLE_CHECK, min_size, size(), HF::Core::SUOTA::Version::unpack(), and HF::Protocol::Response::unpack().

            {
               HF_SERIALIZABLE_CHECK(array, offset, min_size);

               uint16_t start = offset;

               uint16_t size  = Protocol::Response::unpack(array, offset);
               HF_ASSERT(size != 0, {return 0;});
               offset += size;
               size    = Version::unpack(array, offset);
               HF_ASSERT(size != 0, {return 0;});
               offset += size;

               return offset - start;
            }

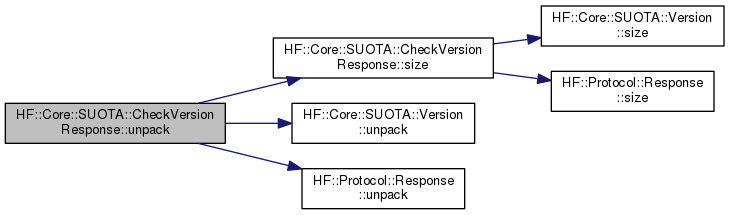

Here is the call graph for this function:

---

The documentation for this struct was generated from the following file:

• suota.h
