HF::Core::SUOTA::Version Struct Reference

Helper class that represents the information of a particular version. More...

#include <suota.h>

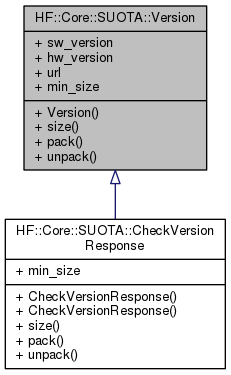

Inheritance diagram for HF::Core::SUOTA::Version:

Collaboration diagram for HF::Core::SUOTA::Version:

Public Member Functions
	Version (const std::string _sw_version="", const std::string _hw_version="", const std::string _url="")
	Constructor. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

Data Fields
std::string	sw_version
	Current/Available software version. More...
std::string	hw_version
	Current/Minimum required hardware version. More...
std::string	url
	Update URL. More...

Static Public Attributes
static constexpr uint16_t	min_size = 2 * sizeof(uint8_t)
	Minimum pack/unpack required data size.

Detailed Description

Helper class that represents the information of a particular version.

Definition at line 91 of file suota.h.

Constructor & Destructor Documentation

Version()

HF::Core::SUOTA::Version::Version ( const std::string  _sw_version = "", const std::string  _hw_version = "", const std::string  _url = ""  )

inline

Constructor.

Parameters

[in]	_sw_version	software version string.
[in]	_hw_version	hardware version string.
[in]	_url	update URL string.

Definition at line 104 of file suota.h.

                                              :
               sw_version(_sw_version), hw_version(_hw_version), url(_url)
            {}

Member Function Documentation

pack()

uint16_t HF::Core::SUOTA::Version::pack	(	Common::ByteArray &	array,
		uint16_t	offset = 0
	)		const

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

Referenced by HF::Core::SUOTA::CheckVersionResponse::pack().

Here is the caller graph for this function:

size()

uint16_t HF::Core::SUOTA::Version::size

(

)

const

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

Referenced by HF::Core::SUOTA::CheckVersionResponse::size().

Here is the caller graph for this function:

unpack()

uint16_t HF::Core::SUOTA::Version::unpack	(	const Common::ByteArray &	array,
		uint16_t	offset = 0
	)

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

Referenced by HF::Core::SUOTA::CheckVersionResponse::unpack().

Here is the caller graph for this function:

Field Documentation

hw_version

std::string HF::Core::SUOTA::Version::hw_version

Current/Minimum required hardware version.

Definition at line 94 of file suota.h.

sw_version

std::string HF::Core::SUOTA::Version::sw_version

Current/Available software version.

Definition at line 93 of file suota.h.

url

std::string HF::Core::SUOTA::Version::url

Update URL.

Definition at line 95 of file suota.h.

---

The documentation for this struct was generated from the following file:

• suota.h
