HF::Core::AttributeReporting::Periodic::Rule Struct Reference

This class represents a periodic rule for attribute reporting. More...

#include <attribute_reporting.h>

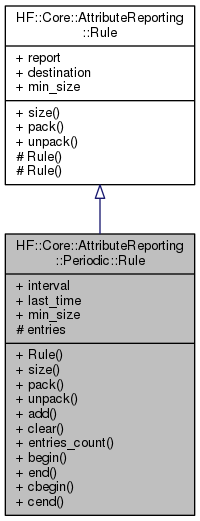

Inheritance diagram for HF::Core::AttributeReporting::Periodic::Rule:

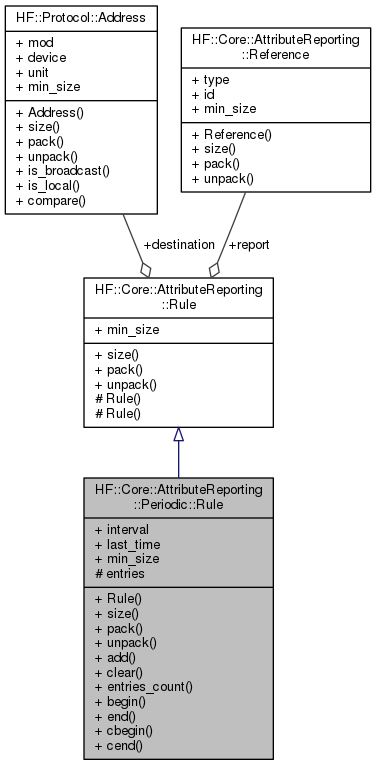

Collaboration diagram for HF::Core::AttributeReporting::Periodic::Rule:

Public Member Functions
	Rule (uint32_t _interval=0)
	Constructor. More...
void	add (const Entry &entry)
	Add the given entry to rule. More...
void	clear ()
	Remove all entries in this rule.
uint16_t	entries_count ()
	Number of entries present in this rule. More...
iterator	begin ()
	Get an iterator to the start of the entries in this rule. More...
iterator	end ()
	Get an iterator to the end of the entries in this rule. More...
const_iterator	cbegin () const
	Get a constant iterator to the start of the entries in this rule. More...
const_iterator	cend () const
	Get constant iterator to the end of the entries in this rule. More...
Public Member Functions inherited from HF::Core::AttributeReporting::Rule
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

Data Fields
uint32_t	interval
	Attribute indicating the time interval rule needs to be activated.
uint32_t	last_time
	Attribute indicating the last time rule was activated.
Data Fields inherited from HF::Core::AttributeReporting::Rule
Reference	report
	Report reference this rule generates.
Protocol::Address	destination
	Device/unit that will receive the report.

Static Public Attributes
static constexpr uint16_t	min_size
	Minimum pack/unpack required data size.
Static Public Attributes inherited from HF::Core::AttributeReporting::Rule
static constexpr uint16_t	min_size
	Minimum pack/unpack required data size.

Protected Attributes
Container	entries
	Container for the entries of the periodic rule.

Additional Inherited Members
Protected Member Functions inherited from HF::Core::AttributeReporting::Rule
	Rule (Type type)
	Constructor. More...

Detailed Description

This class represents a periodic rule for attribute reporting.

Definition at line 235 of file attribute_reporting.h.

Constructor & Destructor Documentation

Rule()

HF::Core::AttributeReporting::Periodic::Rule::Rule ( uint32_t  _interval = 0 )

inline

Constructor.

Parameters

[in]

_interval

periodic rule interval value.

Definition at line 254 of file attribute_reporting.h.

                                           : AttributeReporting::Rule(PERIODIC),
                  interval(_interval),
                  last_time(0)
               {}

Member Function Documentation

add()

void HF::Core::AttributeReporting::Periodic::Rule::add ( const Entry &  entry )

inline

Add the given entry to rule.

Parameters

[in]

entry

reference to the entry to add to this rule.

Definition at line 275 of file attribute_reporting.h.

References entries.

               {
                  entries.push_front(entry);
               }

begin()

iterator HF::Core::AttributeReporting::Periodic::Rule::begin ( )

inline

Get an iterator to the start of the entries in this rule.

Returns

iterator to the start of the entries present in this rule.

Definition at line 304 of file attribute_reporting.h.

References entries.

               {
                  return entries.begin();
               }

cbegin()

const_iterator HF::Core::AttributeReporting::Periodic::Rule::cbegin ( ) const

inline

Get a constant iterator to the start of the entries in this rule.

Returns

iterator to the start of the entries present in this rule.

Definition at line 324 of file attribute_reporting.h.

References entries.

               {
                  return entries.cbegin();
               }

cend()

const_iterator HF::Core::AttributeReporting::Periodic::Rule::cend ( ) const

inline

Get constant iterator to the end of the entries in this rule.

Returns

iterator to the end of the entries present in this rule.

Definition at line 334 of file attribute_reporting.h.

References entries.

               {
                  return entries.cend();
               }

end()

iterator HF::Core::AttributeReporting::Periodic::Rule::end ( )

inline

Get an iterator to the end of the entries in this rule.

Returns

iterator to the end of the entries present in this rule.

Definition at line 314 of file attribute_reporting.h.

References entries.

               {
                  return entries.end();
               }

entries_count()

uint16_t HF::Core::AttributeReporting::Periodic::Rule::entries_count ( )

inline

Number of entries present in this rule.

Returns

number of entries present in this rule.

Definition at line 293 of file attribute_reporting.h.

References entries.

               {
                  return std::distance(entries.begin(), entries.end());
               }

---

The documentation for this struct was generated from the following file:

• attribute_reporting.h
