HAN-FUN API
1.5.3
This project provides the common implementation of ULE Alliance's HAN-FUN application protocol.
|

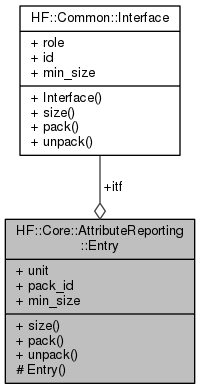

Parent class for all report rule entries. More...
#include <attribute_reporting.h>
Public Member Functions | |
uint16_t | size () const |
Number bytes needed to serialize the message. More... | |
uint16_t | pack (Common::ByteArray &array, uint16_t offset=0) const |
Write the object on to a ByteArray so it can be sent over the network. More... | |
uint16_t | unpack (const Common::ByteArray &array, uint16_t offset=0) |
Read a message from a ByteArray. More... | |
Data Fields | |
uint8_t | unit |
Unit ID this entry to. More... | |
Common::Interface | itf |
Interface UID. More... | |
uint8_t | pack_id |
Attribute's Pack ID. More... | |
Static Public Attributes | |
static constexpr uint16_t | min_size |
Minimum pack/unpack required data size. | |
Parent class for all report rule entries.
Definition at line 139 of file attribute_reporting.h.
uint16_t HF::Core::AttributeReporting::Entry::pack | ( | Common::ByteArray & | array, |
uint16_t | offset = 0 |
||
) | const |
Write the object on to a ByteArray so it can be sent over the network.
The buffer passed in MUST have enough size to hold the serialized object, e.g.,
[in,out] | array | ByteArray reference to write the object to. |
[in] | offset | offset to start writing to. |
uint16_t HF::Core::AttributeReporting::Entry::size | ( | ) | const |
Number bytes needed to serialize the message.
uint16_t HF::Core::AttributeReporting::Entry::unpack | ( | const Common::ByteArray & | array, |
uint16_t | offset = 0 |
||
) |
Read a message from a ByteArray.
[in] | array | ByteArray reference to read the message from. |
[in] | offset | offset to start reading from. |
Common::Interface HF::Core::AttributeReporting::Entry::itf |
Definition at line 142 of file attribute_reporting.h.
uint8_t HF::Core::AttributeReporting::Entry::pack_id |
Attribute's Pack ID.
Definition at line 144 of file attribute_reporting.h.
uint8_t HF::Core::AttributeReporting::Entry::unit |
Unit ID this entry to.
Definition at line 141 of file attribute_reporting.h.
