group_table.h File Reference

This file contains the definitions for the Group Table service. More...

#include "hanfun/protocol.h"
#include "hanfun/core.h"

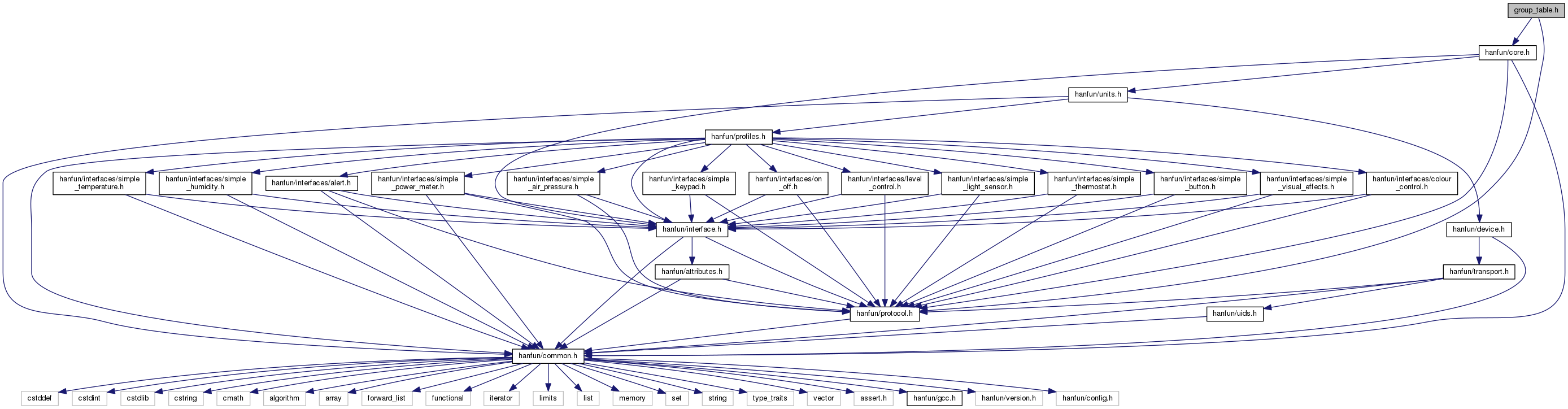

Include dependency graph for group_table.h:

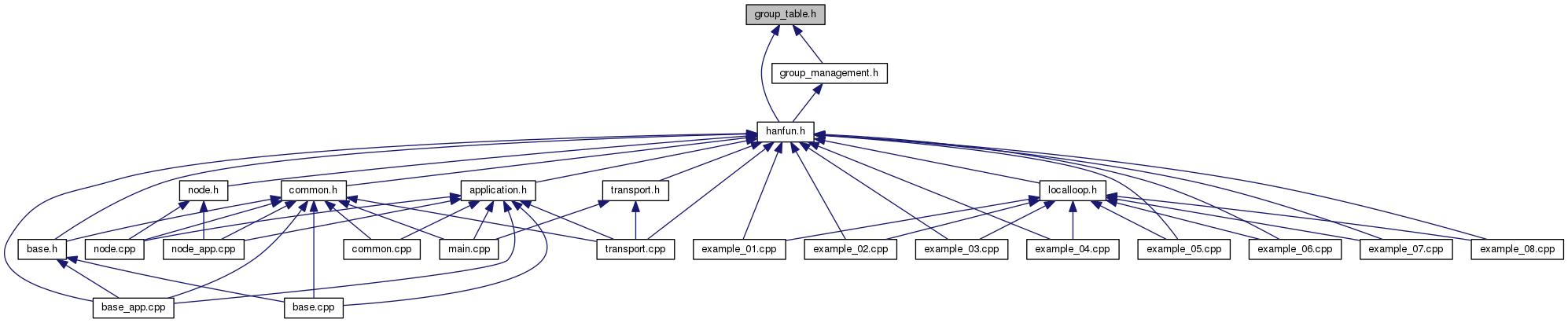

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	HF::Core::GroupTable::Entry
	This represents a group table entry data structure. More...
struct	HF::Core::GroupTable::NumberOfEntries
	Helper class to handle the Number Of Entries attribute for the Group Table service. More...
struct	HF::Core::GroupTable::NumberOfMaxEntries
	Helper class to handle the Number Of Max Entries attribute for the Group Table service. More...
struct	HF::Core::GroupTable::Response
	Base class for responses. More...
struct	HF::Core::GroupTable::ReadEntries
	This class contains the required parameters for a GroupTable::READ_ENTRIES_CMD command. More...
struct	HF::Core::GroupTable::ReadEntriesResponse
	This class the response for a GroupTable::READ_ENTRIES_CMD command. More...
struct	HF::Core::GroupTable::IEntries
	Group Table persistent storage API. More...
struct	HF::Core::GroupTable::Entries
	Default implementation of the IEntries API. More...
struct	HF::Core::GroupTable::Base
	Group Table Service : Parent. More...
class	HF::Core::GroupTable::IServer
	Group Table Service : Server side implementation. More...
struct	HF::Core::GroupTable::Client
	Group Table Service : Client side implementation. More...

Namespaces
	HF
	Top-level namespace for the HAN-FUN library.
	HF::Core
	This is the top-level namespace for the Core Services and Interfaces implementation.
	HF::Core::GroupTable
	This namespace contains the implementation of the Group Table service.

Enumerations
enum	HF::Core::GroupTable::CMD { HF::Core::GroupTable::ADD_CMD = 0x01, HF::Core::GroupTable::REMOVE_CMD = 0x02, HF::Core::GroupTable::REMOVE_ALL_CMD = 0x03, HF::Core::GroupTable::READ_ENTRIES_CMD = 0x04 }
	Command IDs. More...
enum	HF::Core::GroupTable::Attributes { HF::Core::GroupTable::NUMBER_OF_ENTRIES_ATTR = 0x01, HF::Core::GroupTable::NUMBER_OF_MAX_ENTRIES_ATTR = 0x02 }
	Attributes. More...

Functions
HF::Attributes::IAttribute *	HF::Core::create_attribute (GroupTable::IServer *server, uint8_t uid)
	Create an attribute object that can hold the attribute with the given uid. More...
HF::Attributes::IAttribute *	HF::Core::GroupTable::create_attribute (uint8_t uid)
	Create an attribute object that can hold the attribute with the given uid. (HF::Core::GroupTable::Server *,uint8_t) More...
std::ostream &	operator<< (std::ostream &stream, const HF::Core::GroupTable::CMD command)
	Convert the given command into a string and write it to the given stream. More...
std::ostream &	operator<< (std::ostream &stream, const HF::Core::GroupTable::Attributes attribute)
	Convert the given attribute into a string and write it to the given stream. More...

Detailed Description

This file contains the definitions for the Group Table service.

Version

1.5.3

Copyright

Copyright ©   2017 ULE Alliance

For licensing information, please see the file 'LICENSE' in the root folder.

Initial development by Bithium S.A. [http://www.bithium.com]

Definition in file group_table.h.
