HF::Transport::AbstractLink Class Reference

Parent class for all HF::Transport::Link implementations. More...

#include <transport.h>

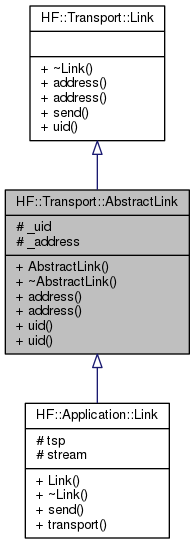

Inheritance diagram for HF::Transport::AbstractLink:

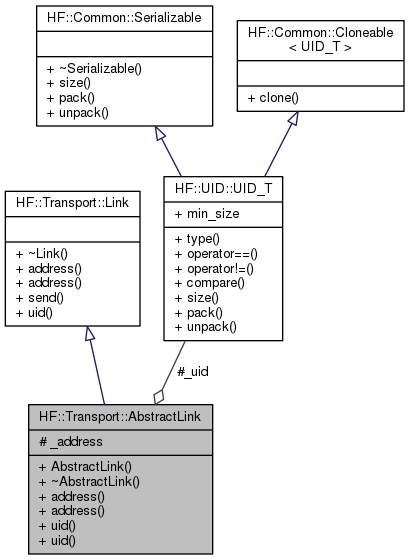

Collaboration diagram for HF::Transport::AbstractLink:

Public Member Functions
uint16_t	address () const
	Get the address of the device this link corresponds to. More...
void	address (uint16_t addr)
	Set the address of this link corresponds to. More...
const HF::UID::UID	uid () const
	Return the end-point UID associated with this link. More...
Public Member Functions inherited from HF::Transport::Link
virtual void	send (Common::ByteArray &array)=0
	Send the data in the given ByteArray using the link to the remote end-point. More...

Protected Attributes
HF::UID::UID_T *	_uid
	UID associated with this link.
uint16_t	_address
	HAN-FUN address associated with the remote end-point.

Detailed Description

Parent class for all HF::Transport::Link implementations.

Definition at line 196 of file inc/hanfun/transport.h.

Member Function Documentation

address() [1/2]

uint16_t HF::Transport::AbstractLink::address ( ) const

inlinevirtual

Get the address of the device this link corresponds to.

Returns

the address of the device for this link.

Implements HF::Transport::Link.

Definition at line 215 of file inc/hanfun/transport.h.

References _address.

         {
            return _address;
         }

address() [2/2]

void HF::Transport::AbstractLink::address ( uint16_t  addr )

inlinevirtual

Set the address of this link corresponds to.

Parameters

[in]

addr

the address value to set.

Implements HF::Transport::Link.

Definition at line 220 of file inc/hanfun/transport.h.

References _address.

         {
            _address = addr;
         }

uid()

const HF::UID::UID HF::Transport::AbstractLink::uid ( ) const

inlinevirtual

Return the end-point UID associated with this link.

For example, for a ULE transport layer this would return the RFPI/IPUI of the remote device.

Returns

the UID of the remote device of this link.

Implements HF::Transport::Link.

Definition at line 225 of file inc/hanfun/transport.h.

References _uid.

         {
            return HF::UID::UID(_uid);
         }

---

The documentation for this class was generated from the following file:

• inc/hanfun/transport.h
