HF::Protocol::GetAttributePack::Response Struct Reference

This class represents the payload of a HF::Message::GET_ATTR_PACK_RES message. More...

#include <attributes.h>

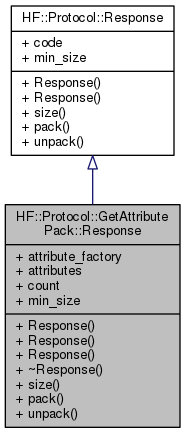

Inheritance diagram for HF::Protocol::GetAttributePack::Response:

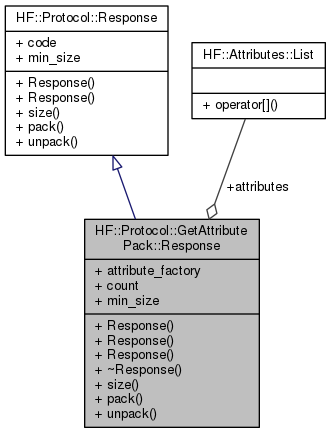

Collaboration diagram for HF::Protocol::GetAttributePack::Response:

Public Member Functions
	Response ()
	Constructor.
	Response (HF::Attributes::List &attributes)
	Constructor. More...
	Response (HF::Attributes::Factory factory)
	Constructor. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...
Public Member Functions inherited from HF::Protocol::Response
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

Data Fields
HF::Attributes::Factory	attribute_factory
	Pointer to the function to request the attribute instances to unpack the response. More...
uint8_t	count
	Unpack attribute count. More...

Static Public Attributes
static constexpr uint16_t	min_size
	Minimum pack/unpack required data size.
Static Public Attributes inherited from HF::Protocol::Response
static constexpr uint16_t	min_size = sizeof(uint8_t)
	Minimum number of bytes required by this message.

Detailed Description

This class represents the payload of a HF::Message::GET_ATTR_PACK_RES message.

The payload contains the attribute values that were requested.

Definition at line 934 of file attributes.h.

Constructor & Destructor Documentation

Response() [1/2]

HF::Protocol::GetAttributePack::Response::Response ( HF::Attributes::List &  attributes )

inline

Constructor.

Parameters

[in]

attributes

list of attributes to send.

Definition at line 961 of file attributes.h.

                                                  :
               attribute_factory(nullptr), attributes(attributes)
            {}

Response() [2/2]

HF::Protocol::GetAttributePack::Response::Response ( HF::Attributes::Factory  factory )

inline

Constructor.

Parameters

[in]

factory

attribute factory to use when reading the incoming attributes.

Definition at line 971 of file attributes.h.

                                                 :
               attribute_factory(factory)
            {}

Member Function Documentation

pack()

uint16_t HF::Protocol::GetAttributePack::Response::pack	(	Common::ByteArray &	array,
		uint16_t	offset = 0
	)		const

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

size()

uint16_t HF::Protocol::GetAttributePack::Response::size

(

)

const

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

unpack()

uint16_t HF::Protocol::GetAttributePack::Response::unpack	(	const Common::ByteArray &	array,
		uint16_t	offset = 0
	)

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

Precondition

The attribute attribute_factory MUST NOT be equal to nullptr.

Field Documentation

attribute_factory

HF::Attributes::Factory HF::Protocol::GetAttributePack::Response::attribute_factory

Pointer to the function to request the attribute instances to unpack the response.

List containing the attributes to send.

Definition at line 937 of file attributes.h.

count

uint8_t HF::Protocol::GetAttributePack::Response::count

Unpack attribute count.

Warning

This value will not be used as the number of attributes, when packing the request.

Definition at line 948 of file attributes.h.

---

The documentation for this struct was generated from the following file:

• attributes.h
