This file contains the definitions for the Simple Power Meter interface. More...

#include "hanfun/common.h"
#include "hanfun/protocol.h"
#include "hanfun/interface.h"

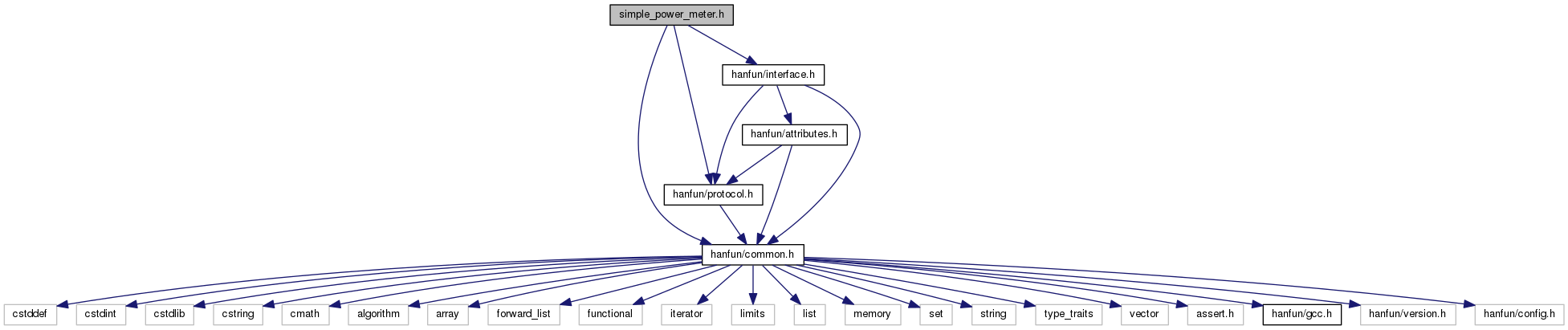

Include dependency graph for simple_power_meter.h:

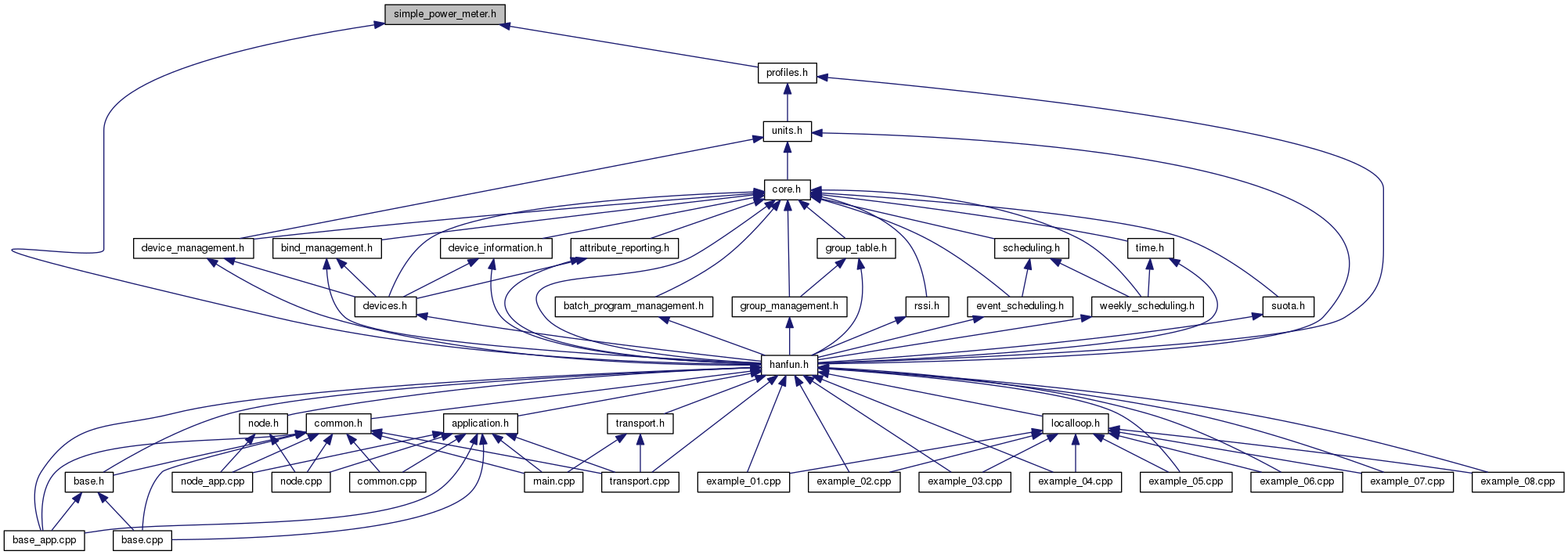

This graph shows which files directly or indirectly include this file:

Data Structures
struct	HF::Interfaces::SimplePowerMeter::Measurement
	This represents a measurement for a given attribute. More...

struct	HF::Interfaces::SimplePowerMeter::Report
	Simple Meter report. More...

struct	HF::Interfaces::SimplePowerMeter::Base
	Simple Power Meter Interface : Parent. More...

class	HF::Interfaces::SimplePowerMeter::Server
	Simple Power Meter Interface : Server side implementation. More...

struct	HF::Interfaces::SimplePowerMeter::Client
	Simple Power Meter Interface : Client side implementation. More...

Namespaces
	HF
	Top-level namespace for the HAN-FUN library.

	HF::Interfaces
	This is the top-level namespace for the implemented Interfaces.

	HF::Interfaces::SimplePowerMeter
	This namespace contains the implementation of the Simple Power Meter interface.

Macros
#define	ATTR_SETTER(__type, __arg, __uid)
	Helper macro used to support attribute reporting.

Enumerations
enum	HF::Interfaces::SimplePowerMeter::CMD { HF::Interfaces::SimplePowerMeter::REPORT_CMD = 0x01, HF::Interfaces::SimplePowerMeter::MEASUREMENT_RESET_CMD = 0x01 }
	Commands IDs. More...

enum	HF::Interfaces::SimplePowerMeter::Attributes { HF::Interfaces::SimplePowerMeter::ENERGY_ATTR = 0x01, HF::Interfaces::SimplePowerMeter::ENERGY_AT_RESET_ATTR = 0x02, HF::Interfaces::SimplePowerMeter::TIME_AT_RESET_ATTR = 0x03, HF::Interfaces::SimplePowerMeter::POWER_ATTR = 0x04, HF::Interfaces::SimplePowerMeter::AVG_POWER_ATTR = 0x05, HF::Interfaces::SimplePowerMeter::AVG_POWER_INTERVAL_ATTR = 0x06, HF::Interfaces::SimplePowerMeter::VOLTAGE_ATTR = 0x07, HF::Interfaces::SimplePowerMeter::CURRENT_ATTR = 0x08, HF::Interfaces::SimplePowerMeter::FREQUENCY_ATTR = 0x09, HF::Interfaces::SimplePowerMeter::POWER_FACTOR_ATTR = 0x0A, HF::Interfaces::SimplePowerMeter::REPORT_INTERVAL_ATTR = 0x0B }
	Attributes IDs. More...

Functions
HF::Attributes::IAttribute *	HF::Interfaces::create_attribute (HF::Interfaces::SimplePowerMeter::Server *server, uint8_t uid)
	Create an attribute object that can hold the attribute with the given `uid`. More...

HF::Attributes::IAttribute *	HF::Interfaces::SimplePowerMeter::create_attribute (uint8_t uid)
	Create an attribute object that can hold the attribute with the given `uid`. (HF::Interfaces::SimplePowerMeter::Server *,uint8_t) More...

std::ostream &	operator<< (std::ostream &stream, const HF::Interfaces::SimplePowerMeter::CMD command)
	Convert the given `command` into a string and write it to the given `stream`. More...

std::ostream &	operator<< (std::ostream &stream, const HF::Interfaces::SimplePowerMeter::Attributes attribute)
	Convert the given `attribute` into a string and write it to the given `stream`. More...

Detailed Description

This file contains the definitions for the Simple Power Meter interface.

For licensing information, please see the file 'LICENSE' in the root folder.

Initial development by Bithium S.A. [http://www.bithium.com]
