This file contains the definitions for the Simple Button interface. More...

#include "hanfun/protocol.h"
#include "hanfun/interface.h"

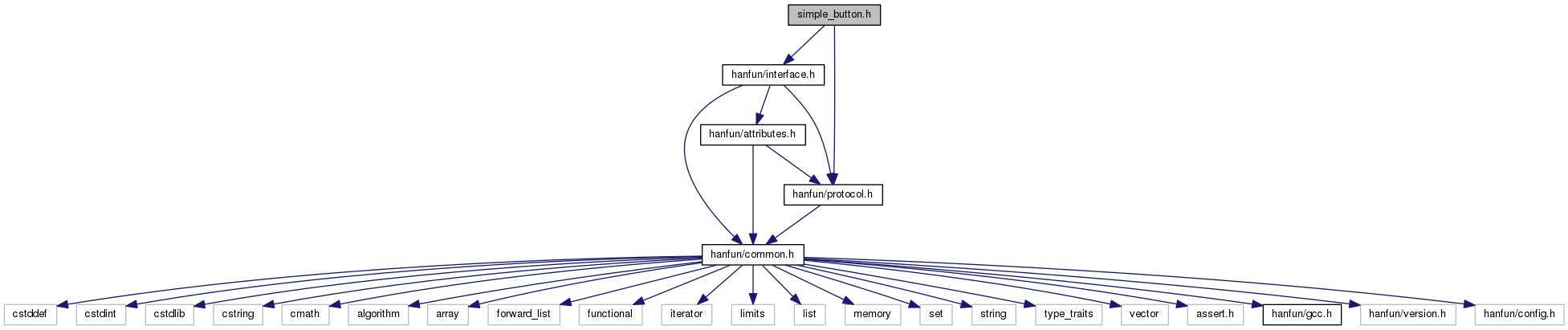

Include dependency graph for simple_button.h:

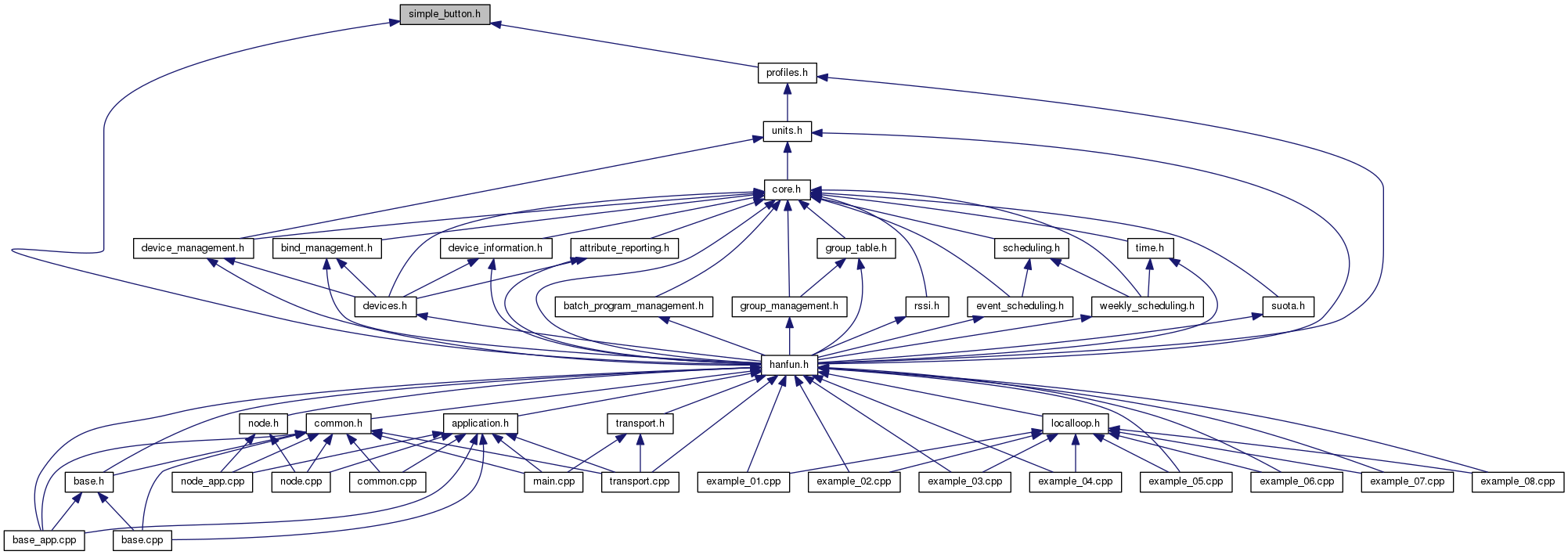

This graph shows which files directly or indirectly include this file:

Data Structures
struct	HF::Interfaces::SimpleButton::ShortPressMaxDuration
	Helper class to handle the Short Press Max Duration attribute for the Simple Button interface. More...

struct	HF::Interfaces::SimpleButton::ExtraLongPressMinDuration
	Helper class to handle the Extra Long Press Min Duration attribute for the Simple Button interface. More...

struct	HF::Interfaces::SimpleButton::DoubleClickGapDuration
	Helper class to handle the Double Click Gap Duration attribute for the Simple Button interface. More...

struct	HF::Interfaces::SimpleButton::Base
	Simple Button Interface : Parent. More...

class	HF::Interfaces::SimpleButton::Server
	Simple Button Interface : Server side implementation. More...

struct	HF::Interfaces::SimpleButton::Client
	Simple Button Interface : Client side implementation. More...

Namespaces
	HF
	Top-level namespace for the HAN-FUN library.

	HF::Interfaces
	This is the top-level namespace for the implemented Interfaces.

	HF::Interfaces::SimpleButton
	This namespace contains the implementation of the Simple Button interface.

Enumerations
enum	HF::Interfaces::SimpleButton::CMD { HF::Interfaces::SimpleButton::SHORT_PRESS_CMD = 1, HF::Interfaces::SimpleButton::LONG_PRESS_CMD = 2, HF::Interfaces::SimpleButton::EXTRA_LONG_PRESS_CMD = 3, HF::Interfaces::SimpleButton::DOUBLE_CLICK_PRESS_CMD = 4 }
	Command IDs. More...

enum	HF::Interfaces::SimpleButton::Attributes { HF::Interfaces::SimpleButton::SHORT_PRESS_MAX_DURATION_ATTR = 1, HF::Interfaces::SimpleButton::EXTRA_LONG_PRESS_MIN_DURATION_ATTR = 2, HF::Interfaces::SimpleButton::DOUBLE_CLICK_GAP_DURATION_ATTR = 3 }
	Attributes. More...

Functions
HF::Attributes::IAttribute *	HF::Interfaces::create_attribute (SimpleButton::Server *server, uint8_t uid)
	Create an attribute object that can hold the attribute with the given `uid`. More...

HF::Attributes::IAttribute *	HF::Interfaces::SimpleButton::create_attribute (uint8_t uid)
	Create an attribute object that can hold the attribute with the given `uid`. (HF::Interfaces::SimpleButton::Server *,uint8_t) More...

std::ostream &	operator<< (std::ostream &stream, const HF::Interfaces::SimpleButton::CMD command)
	Convert the given `command` into a string and write it to the given `stream`. More...

std::ostream &	operator<< (std::ostream &stream, const HF::Interfaces::SimpleButton::Attributes attribute)
	Convert the given `attribute` into a string and write it to the given `stream`. More...

Detailed Description

This file contains the definitions for the Simple Button interface.

For licensing information, please see the file 'LICENSE' in the root folder.

Initial development by Bithium S.A. [http://www.bithium.com]

Definition in file simple_button.h.
