level_control.h File Reference

This file contains the definitions for the Level Control interface. More...

#include "hanfun/protocol.h"
#include "hanfun/interface.h"

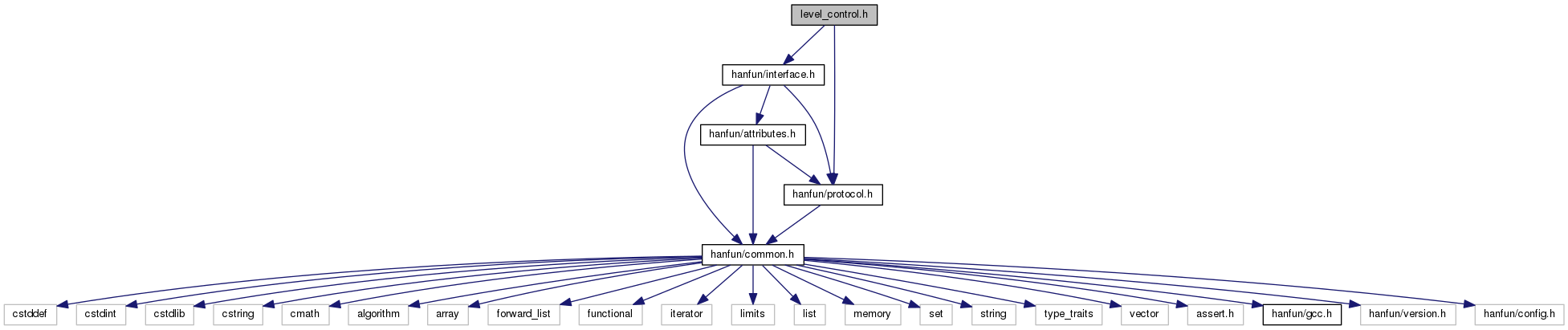

Include dependency graph for level_control.h:

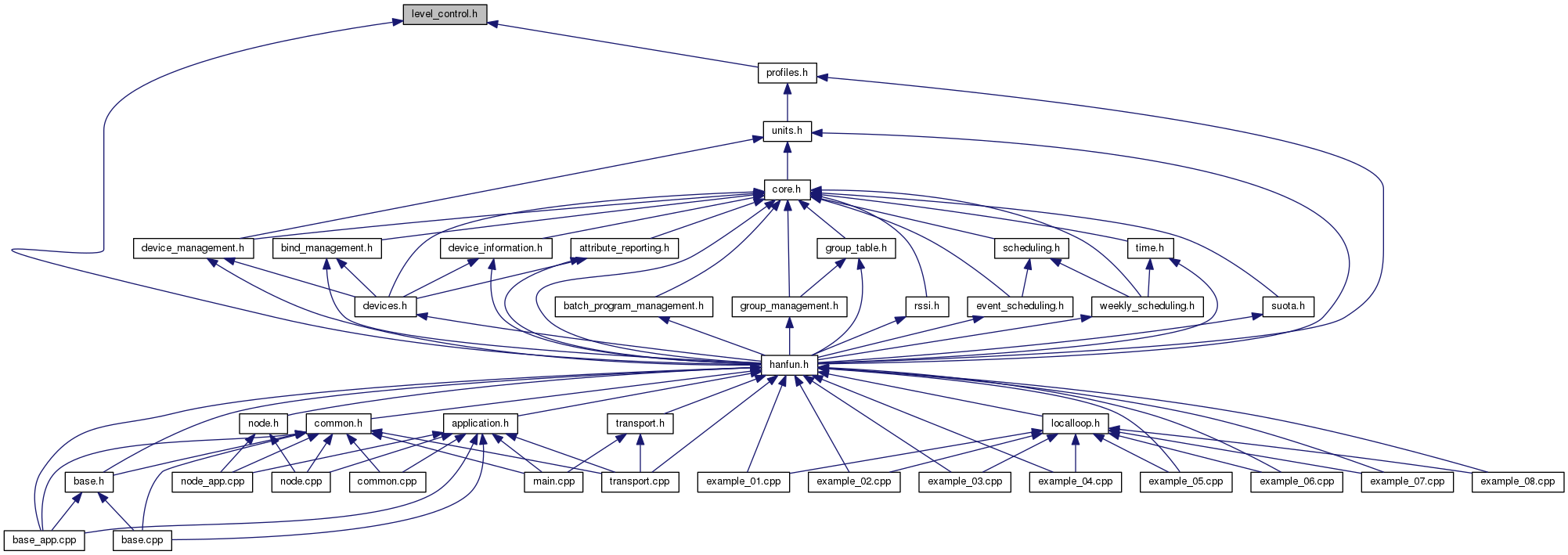

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	HF::Interfaces::LevelControl::Level
	Helper class to handle the Level attribute for the Level Control interface. More...
struct	HF::Interfaces::LevelControl::Base
	Level Control Interface : Parent. More...
class	HF::Interfaces::LevelControl::Server
	Level Control Interface : Server side implementation. More...
class	HF::Interfaces::LevelControl::Client
	Level Control Interface : Client side implementation. More...

Namespaces
	HF
	Top-level namespace for the HAN-FUN library.
	HF::Interfaces
	This is the top-level namespace for the implemented Interfaces.
	HF::Interfaces::LevelControl
	This namespace contains the implementation of the Level Control interface.

Enumerations
enum	HF::Interfaces::LevelControl::CMD { HF::Interfaces::LevelControl::SET_LEVEL_CMD = 0x01, HF::Interfaces::LevelControl::INCREASE_LEVEL_CMD = 0x02, HF::Interfaces::LevelControl::DECREASE_LEVEL_CMD = 0x03 }
	Command IDs. More...
enum	HF::Interfaces::LevelControl::Attributes { HF::Interfaces::LevelControl::LEVEL_ATTR = 0x01 }
	Attributes. More...

Functions
HF::Attributes::IAttribute *	HF::Interfaces::create_attribute (HF::Interfaces::LevelControl::Server *server, uint8_t uid)
	Create an attribute object that can hold the attribute with the given uid. More...
HF::Attributes::IAttribute *	HF::Interfaces::LevelControl::create_attribute (uint8_t uid)
	Create an attribute object that can hold the attribute with the given uid. (HF::Interfaces::LevelControl::Server *,uint8_t) More...
std::ostream &	operator<< (std::ostream &stream, const HF::Interfaces::LevelControl::CMD command)
	Convert the given command into a string and write it to the given stream. More...
std::ostream &	operator<< (std::ostream &stream, const HF::Interfaces::LevelControl::Attributes attribute)
	Convert the given attribute into a string and write it to the given stream. More...

Detailed Description

This file contains the definitions for the Level Control interface.

Version

1.5.3

Copyright

Copyright ©   2014 ULE Alliance

For licensing information, please see the file 'LICENSE' in the root folder.

Initial development by Bithium S.A. [http://www.bithium.com]

Definition in file level_control.h.
