This file contains the definition for the core Device Information interface of the HAN-FUN protocol. More...

#include "hanfun/common.h"
#include "hanfun/interface.h"
#include "hanfun/core.h"

Include dependency graph for device_information.h:

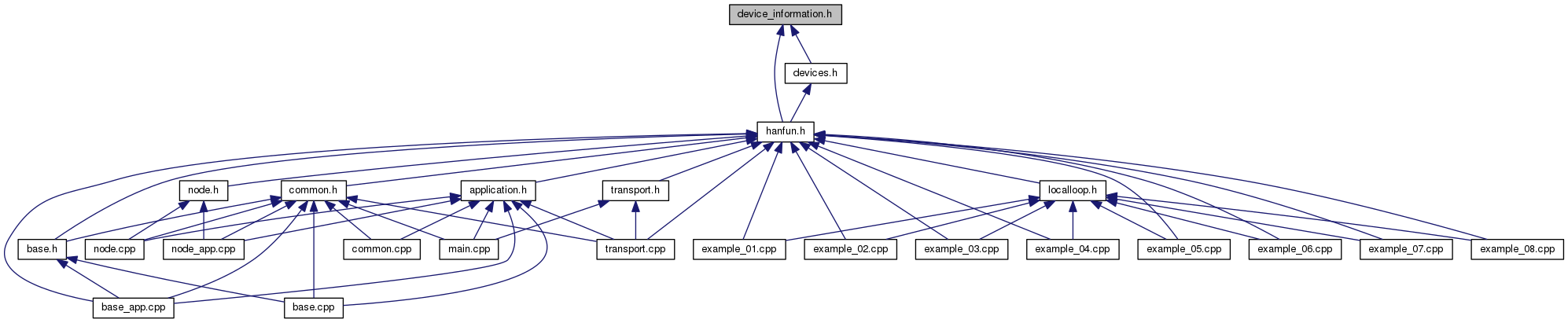

This graph shows which files directly or indirectly include this file:

Data Structures
struct	HF::Core::DeviceInformation::FriendlyName
	Data type to contain the Friendly name attribute. More...

struct	HF::Core::DeviceInformation::FriendlyName::Unit
	Data type representing a unit0's friendly name. More...

class	HF::Core::DeviceInformation::Base
	Parent class for the Device Information interface implementation. More...

struct	HF::Core::DeviceInformation::Server
	Device Information interface : Server side. More...

Namespaces
	HF
	Top-level namespace for the HAN-FUN library.

	HF::Core
	This is the top-level namespace for the Core Services and Interfaces implementation.

	HF::Core::DeviceInformation
	This namespace contains the classes that implement the Device Information service.

Macros
#define	HF_DEVICE_MANUFACTURER_CODE 0x0000
	Device Electronic Manufacturer Code.

#define	HF_APPLICATION_VERSION ""
	Application version.

#define	HF_HARDWARE_VERSION ""
	Hardware Version.

#define	HF_MANUFACTURER_NAME ""
	Manufacturer name.

Enumerations
enum	HF::Core::DeviceInformation::Attributes { HF::Core::DeviceInformation::CORE_VERSION_ATTR = 0x01, HF::Core::DeviceInformation::PROFILE_VERSION_ATTR = 0x02, HF::Core::DeviceInformation::INTERFACE_VERSION_ATTR = 0x03, HF::Core::DeviceInformation::EXTRA_CAP_ATTR = 0x04, HF::Core::DeviceInformation::MIN_SLEEP_TIME_ATTR = 0x05, HF::Core::DeviceInformation::ACTUAL_RESP_TIME_ATTR = 0x06, HF::Core::DeviceInformation::APP_VERSION_ATTR = 0x07, HF::Core::DeviceInformation::HW_VERSION_ATTR = 0x08, HF::Core::DeviceInformation::EMC_ATTR = 0x09, HF::Core::DeviceInformation::DECT_ID_ATTR = 0x0A, HF::Core::DeviceInformation::MANUFACTURER_NAME_ATTR = 0x0B, HF::Core::DeviceInformation::LOCATION_ATTR = 0x0C, HF::Core::DeviceInformation::ENABLED_ATTR = 0x0D, HF::Core::DeviceInformation::FRIENDLY_NAME_ATTR = 0x0E, HF::Core::DeviceInformation::UID_ATTR = 0x0F, HF::Core::DeviceInformation::SERIAL_NUMBER_ATTR = 0x10 }
	Attributes. More...

Functions
HF::Attributes::IAttribute *	HF::Core::create_attribute (HF::Core::DeviceInformation::Server *server, uint8_t uid)
	Create an attribute object that can hold the attribute with the given `uid`. More...

HF::Attributes::IAttribute *	HF::Core::DeviceInformation::create_attribute (uint8_t uid)
	Create an attribute object that can hold the attribute with the given `uid`. (HF::Core::DeviceInformation::Server *,uint8_t) More...

Protocol::Message *	HF::Core::DeviceInformation::mandatory ()
	Create a message that can be used to retrieve the mandatory attributes on a remote device. More...

Protocol::Message *	HF::Core::DeviceInformation::all ()
	Create a message that can be used to retrieve all the attributes on a remote device. More...

Protocol::Message *	HF::Core::DeviceInformation::get (HF::Attributes::UIDS &uids)
	Create a message that can be used to retrieve the attributes with the given `uids` of the device information interface on a remote device. More...

Protocol::Message *	HF::Core::DeviceInformation::get (uint8_t uid)
	Create a message that can be used to retrieve the attribute with the given `uid`. More...

std::ostream &	operator<< (std::ostream &stream, const HF::Core::DeviceInformation::Attributes attribute)
	Convert the given `attribute` into a string and write it to the given `stream`. More...

Detailed Description

This file contains the definition for the core Device Information interface of the HAN-FUN protocol.

For licensing information, please see the file 'LICENSE' in the root folder.

Initial development by Bithium S.A. [http://www.bithium.com]

Data Structures
