msg_t Struct Reference

Message sent between the concentrator and the nodes. More...

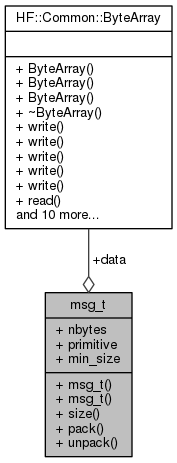

Collaboration diagram for msg_t:

Public Member Functions
	msg_t (uint16_t primitive=NONE_MSG)
	Constructor. More...
	msg_t (uint16_t primitive, HF::Common::ByteArray &data)
	Constructor. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (HF::Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (HF::Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

Data Fields
uint16_t	nbytes
	Number of bytes in the message. More...
uint16_t	primitive
	Message type. More...
HF::Common::ByteArray	data
	Message payload. More...

Static Public Attributes
static constexpr uint16_t	min_size = sizeof(nbytes) + sizeof(primitive)
	Minimum pack/unpack required data size.

Detailed Description

Message sent between the concentrator and the nodes.

Definition at line 60 of file transport.cpp.

Constructor & Destructor Documentation

msg_t() [1/2]

msg_t::msg_t ( uint16_t  primitive = NONE_MSG )

inline

Constructor.

Parameters

[in]

primitive

message type.

Definition at line 71 of file transport.cpp.

                                       :
      primitive(primitive)
   {}

msg_t() [2/2]

msg_t::msg_t ( uint16_t  primitive, HF::Common::ByteArray &  data  )

inline

Constructor.

Parameters

[in]	primitive	message type.
[in]	data	message payload.

Definition at line 81 of file transport.cpp.

                                                     :
      primitive(primitive), data(data)
   {}

Member Function Documentation

pack()

uint16_t msg_t::pack ( HF::Common::ByteArray &  array, uint16_t  offset = 0  ) const

inline

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

Definition at line 95 of file transport.cpp.

References data, HF_SERIALIZABLE_CHECK, primitive, size(), and HF::Common::ByteArray::write().

   {
      HF_SERIALIZABLE_CHECK(array, offset, size());

      uint16_t start = offset;

      uint16_t temp  = (uint16_t) (sizeof(uint16_t) + data.size());

      offset += array.write(offset, temp);

      offset += array.write(offset, primitive);

      std::copy(data.begin(), data.end(), array.begin() + offset);

      return offset - start;
   }

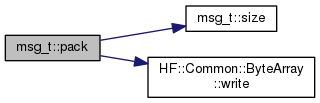

Here is the call graph for this function:

size()

uint16_t msg_t::size ( ) const

inline

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

Definition at line 89 of file transport.cpp.

References data, and min_size.

Referenced by pack().

   {
      return min_size + data.size();
   }

Here is the caller graph for this function:

unpack()

uint16_t msg_t::unpack ( HF::Common::ByteArray &  array, uint16_t  offset = 0  )

inline

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

Definition at line 113 of file transport.cpp.

References data, HF_SERIALIZABLE_CHECK, min_size, nbytes, primitive, and HF::Common::ByteArray::read().

   {
      HF_SERIALIZABLE_CHECK(array, offset, min_size);

      uint16_t start = offset;

      offset += array.read(offset, nbytes);

      offset += array.read(offset, primitive);

      uint16_t data_size = nbytes - sizeof(primitive);

      data = HF::Common::ByteArray(data_size);

      auto begin = array.begin();

      begin += offset;

      auto end = begin + data_size;

      std::copy(begin, end, data.begin());

      return offset - start;
   }

Here is the call graph for this function:

Field Documentation

data

HF::Common::ByteArray msg_t::data

Message payload.

Definition at line 64 of file transport.cpp.

Referenced by pack(), size(), and unpack().

nbytes

uint16_t msg_t::nbytes

Number of bytes in the message.

Definition at line 62 of file transport.cpp.

Referenced by unpack().

primitive

uint16_t msg_t::primitive

Message type.

Definition at line 63 of file transport.cpp.

Referenced by pack(), and unpack().

---

The documentation for this struct was generated from the following file:

• transport.cpp
