HF::Core::SUOTA::UpgradeStatus Struct Reference

This class contains the required parameters for a SUOTA::UPGRADE_COMPLETE_CMD command. More...

#include <suota.h>

Collaboration diagram for HF::Core::SUOTA::UpgradeStatus:

Public Types
enum	Code {   UPGRADE_SUCCESSFUL = 0x00, UPGRADE_ABORTED = 0x11, GMEP_SESSION_ERROR = 0x12, INVALID_IMAGE = 0x13,   MEMORY_ACCESS_ERROR = 0x14, BATTERY_TOO_LOW = 0x15, FAIL_UNKNOWN = Common::FAIL_UNKNOWN }
	Possible status in a. More...

Public Member Functions
	UpgradeStatus (Code _code=FAIL_UNKNOWN, std::string _sw_version="")
	Software version after update. More...
uint16_t	size () const
	Number bytes needed to serialize the message. More...
uint16_t	pack (Common::ByteArray &array, uint16_t offset=0) const
	Write the object on to a ByteArray so it can be sent over the network. More...
uint16_t	unpack (const Common::ByteArray &array, uint16_t offset=0)
	Read a message from a ByteArray. More...

Data Fields
std::string	sw_version
	Update status.

Static Public Attributes
static constexpr uint16_t	min_size = sizeof(uint8_t)
	Minimum pack/unpack required data size.

Detailed Description

This class contains the required parameters for a SUOTA::UPGRADE_COMPLETE_CMD command.

Definition at line 200 of file suota.h.

Member Enumeration Documentation

Code

enum HF::Core::SUOTA::UpgradeStatus::Code

Possible status in a.

Enumerator
UPGRADE_SUCCESSFUL	Upgrade successful.
UPGRADE_ABORTED	Upgrade aborted.
GMEP_SESSION_ERROR	GMEP session error.
INVALID_IMAGE	Invalid image.
MEMORY_ACCESS_ERROR	Memory access error.
BATTERY_TOO_LOW	Battery too low.
FAIL_UNKNOWN	Fail: Unknown Error.

Definition at line 205 of file suota.h.

            {
               UPGRADE_SUCCESSFUL  = 0x00,
               UPGRADE_ABORTED     = 0x11,
               GMEP_SESSION_ERROR  = 0x12,
               INVALID_IMAGE       = 0x13,
               MEMORY_ACCESS_ERROR = 0x14,
               BATTERY_TOO_LOW     = 0x15,
               FAIL_UNKNOWN        = Common::FAIL_UNKNOWN,
            } Code;

Constructor & Destructor Documentation

UpgradeStatus()

HF::Core::SUOTA::UpgradeStatus::UpgradeStatus ( Code  _code = FAIL_UNKNOWN, std::string  _sw_version = ""  )

inline

Software version after update.

Constructor.

Parameters

[in]	_code	update status to send in the command.
[in]	_sw_version	new software version of the update.

Definition at line 225 of file suota.h.

                                                                                :
               code(_code), sw_version(_sw_version) {}

Member Function Documentation

pack()

uint16_t HF::Core::SUOTA::UpgradeStatus::pack ( Common::ByteArray &  array, uint16_t  offset = 0  ) const

inline

Write the object on to a ByteArray so it can be sent over the network.

The buffer passed in MUST have enough size to hold the serialized object, e.g.,

Serializable obj;
ByteArray payload(obj.size());
obj.pack(payload);

Parameters

[in,out]	array	ByteArray reference to write the object to.
[in]	offset	offset to start writing to.

Returns

the number of bytes written.

Definition at line 240 of file suota.h.

References HF_SERIALIZABLE_CHECK, HF::Common::SerializableHelper< T, typename >::pack(), size(), sw_version, and HF::Common::ByteArray::write().

            {
               HF_SERIALIZABLE_CHECK(array, offset, size());

               uint16_t start = offset;

               offset += array.write(offset, static_cast<uint8_t>(code));

               if (!sw_version.empty())
               {
                  offset +=
                     Common::SerializableHelper<std::string>::pack(sw_version, array, offset);
               }

               return offset - start;
            }

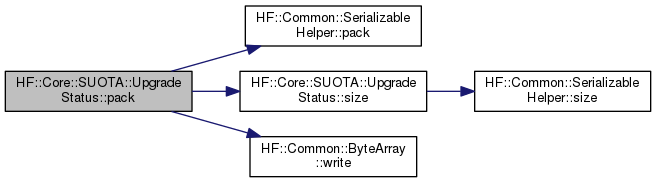

Here is the call graph for this function:

size()

uint16_t HF::Core::SUOTA::UpgradeStatus::size ( ) const

inline

Number bytes needed to serialize the message.

Returns

number of bytes the message requires to be serialized.

Definition at line 232 of file suota.h.

References HF::Common::SerializableHelper< T, typename >::size(), and sw_version.

Referenced by pack().

            {
               return sizeof(uint8_t) +
                      (sw_version.empty() ? 0 :
                       Common::SerializableHelper<std::string>::size(sw_version));
            }

Here is the call graph for this function:

Here is the caller graph for this function:

unpack()

uint16_t HF::Core::SUOTA::UpgradeStatus::unpack ( const Common::ByteArray &  array, uint16_t  offset = 0  )

inline

Read a message from a ByteArray.

Parameters

[in]	array	ByteArray reference to read the message from.
[in]	offset	offset to start reading from.

Returns

the number of bytes read.

Definition at line 258 of file suota.h.

References HF_SERIALIZABLE_CHECK, min_size, HF::Common::ByteArray::read(), sw_version, and HF::Common::SerializableHelper< T, typename >::unpack().

            {
               HF_SERIALIZABLE_CHECK(array, offset, min_size);

               uint16_t start = offset;

               uint8_t temp;
               offset += array.read(offset, temp);
               code    = static_cast<Code>(temp);

               offset += Common::SerializableHelper<std::string>::unpack(sw_version, array, offset);

               return offset - start;
            }

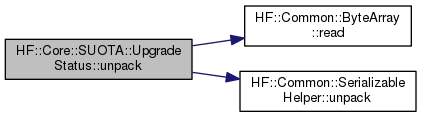

Here is the call graph for this function:

---

The documentation for this struct was generated from the following file:

• suota.h
