This file contains the definitions for the Simple Thermostat interface. More...

#include "hanfun/protocol.h"
#include "hanfun/interface.h"

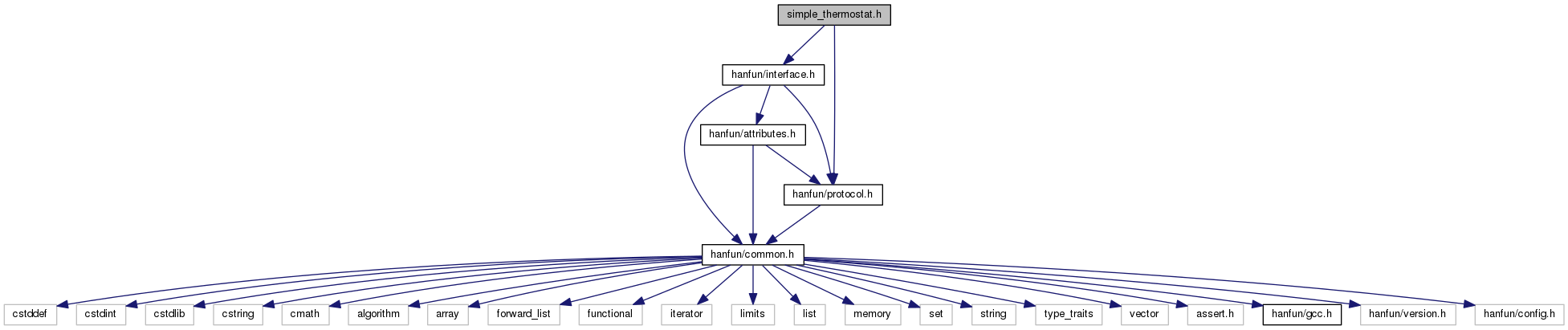

Include dependency graph for simple_thermostat.h:

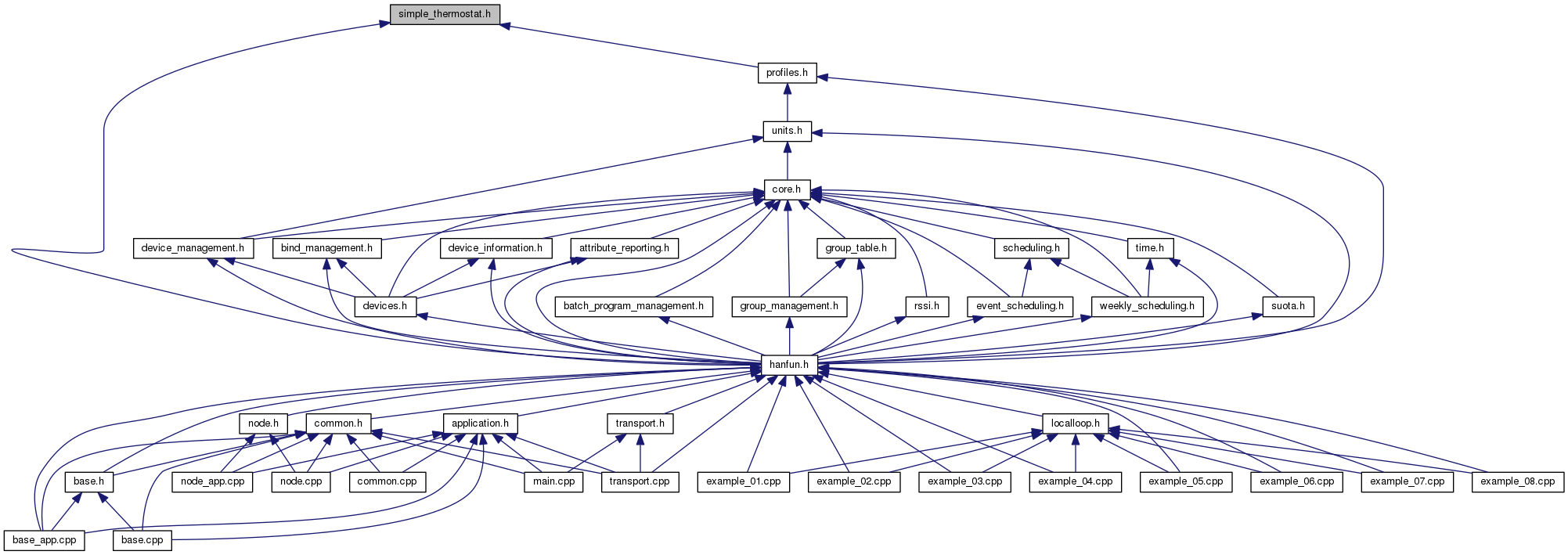

This graph shows which files directly or indirectly include this file:

Data Structures
struct	HF::Interfaces::SimpleThermostat::SupportedModes
	Helper class to handle the Supported Modes attribute for the Simple Thermostat interface. More...

struct	HF::Interfaces::SimpleThermostat::HeatCoolMode
	Helper class to handle the Heat/Cool Mode attribute for the Simple Thermostat interface. More...

struct	HF::Interfaces::SimpleThermostat::FanMode
	Helper class to handle the Fan Mode attribute for the Simple Thermostat interface. More...

struct	HF::Interfaces::SimpleThermostat::Attribute< _ID >
	Helper template class to handle attributes for the Simple Thermostat interface. More...

struct	HF::Interfaces::SimpleThermostat::BoostDuration
	Helper class to handle the Boost Duration attribute for the Simple Thermostat interface. More...

struct	HF::Interfaces::SimpleThermostat::Base
	Simple Thermostat Interface : Parent. More...

class	HF::Interfaces::SimpleThermostat::Server
	Simple Thermostat Interface : Server side implementation. More...

struct	HF::Interfaces::SimpleThermostat::Client
	Simple Thermostat Interface : Client side implementation. More...

Namespaces
	HF
	Top-level namespace for the HAN-FUN library.

	HF::Interfaces
	This is the top-level namespace for the implemented Interfaces.

	HF::Interfaces::SimpleThermostat
	This namespace contains the implementation of the Simple Thermostat interface.

Typedefs
typedef Attribute< HEAT_MODE_TEMP_ATTR >	HF::Interfaces::SimpleThermostat::HeatModeTemperature
	Helper class to handle the Heat Mode temperature attribute for the Simple Thermostat interface.

typedef Attribute< COOL_MODE_TEMP_ATTR >	HF::Interfaces::SimpleThermostat::CoolModeTemperature
	Helper class to handle the Cool Mode temperature attribute for the Simple Thermostat interface.

typedef Attribute< AUTO_MODE_HEAT_TEMP_ATTR >	HF::Interfaces::SimpleThermostat::AutoModeHeatTemperature
	Helper class to handle the Heat/Cool Mode heat temperature attribute for the Simple Thermostat interface.

typedef Attribute< AUTO_MODE_COOL_TEMP_ATTR >	HF::Interfaces::SimpleThermostat::AutoModeCoolTemperature
	Helper class to handle the Heat/Cool Mode cool temperature attribute for the Simple Thermostat interface.

typedef Attribute< HEAT_MODE_TEMP_OFFSET_ATTR >	HF::Interfaces::SimpleThermostat::HeatModeTemperatureOffset
	Helper class to handle the Heat Mode temperature offset attribute for the Simple Thermostat interface.

typedef Attribute< COOL_MODE_TEMP_OFFSET_ATTR >	HF::Interfaces::SimpleThermostat::CoolModeTemperatureOffset
	Helper class to handle the Cool Mode temperature offset attribute for the Simple Thermostat interface.

Enumerations
enum	HF::Interfaces::SimpleThermostat::CMD
	Command IDs.

enum	HF::Interfaces::SimpleThermostat::Attributes { HF::Interfaces::SimpleThermostat::SUPPORTED_MODES_ATTR = 0x01, HF::Interfaces::SimpleThermostat::HEAT_COOL_MODE_ATTR = 0x02, HF::Interfaces::SimpleThermostat::FAN_MODE_ATTR = 0x03, HF::Interfaces::SimpleThermostat::HEAT_MODE_TEMP_ATTR = 0x04, HF::Interfaces::SimpleThermostat::COOL_MODE_TEMP_ATTR = 0x05, HF::Interfaces::SimpleThermostat::AUTO_MODE_HEAT_TEMP_ATTR = 0x06, HF::Interfaces::SimpleThermostat::AUTO_MODE_COOL_TEMP_ATTR = 0x07, HF::Interfaces::SimpleThermostat::HEAT_MODE_TEMP_OFFSET_ATTR = 0x08, HF::Interfaces::SimpleThermostat::COOL_MODE_TEMP_OFFSET_ATTR = 0x09, HF::Interfaces::SimpleThermostat::BOOST_DURATION_ATTR = 0x0A }
	Attributes. More...

enum	HF::Interfaces::SimpleThermostat::SupportedModesMasks { HF::Interfaces::SimpleThermostat::HEAT_MODE = 0x01, HF::Interfaces::SimpleThermostat::COOL_MODE = 0x02, HF::Interfaces::SimpleThermostat::AUTO_MODE = 0x04, HF::Interfaces::SimpleThermostat::FAN_OFF_MODE = 0x10, HF::Interfaces::SimpleThermostat::FAN_ON_MODE = 0x20, HF::Interfaces::SimpleThermostat::FAN_AUTO_MODE = 0x40 }
	Masks for the Simple Thermostat supported modes. More...

Functions
HF::Attributes::IAttribute *	HF::Interfaces::create_attribute (SimpleThermostat::Server *server, uint8_t uid)
	Create an attribute object that can hold the attribute with the given `uid`. More...

HF::Attributes::IAttribute *	HF::Interfaces::SimpleThermostat::create_attribute (uint8_t uid)
	Create an attribute object that can hold the attribute with the given `uid`. (HF::Interfaces::SimpleThermostat::Server *,uint8_t) More...

std::ostream &	operator<< (std::ostream &stream, const HF::Interfaces::SimpleThermostat::CMD command)
	Convert the given `command` into a string and write it to the given `stream`. More...

std::ostream &	operator<< (std::ostream &stream, const HF::Interfaces::SimpleThermostat::Attributes attribute)
	Convert the given `attribute` into a string and write it to the given `stream`. More...

Detailed Description

This file contains the definitions for the Simple Thermostat interface.

For licensing information, please see the file 'LICENSE' in the root folder.

Initial development by Bithium S.A. [http://www.bithium.com]

Definition in file simple_thermostat.h.

Data Structures
