bind_management.h File Reference

This file contains the definitions for the core Bind Management Interface of the HAN-FUN protocol. More...

#include "hanfun/common.h"
#include "hanfun/protocol.h"
#include "hanfun/core.h"
#include "hanfun/interface.h"
#include "hanfun/core/session_management.h"

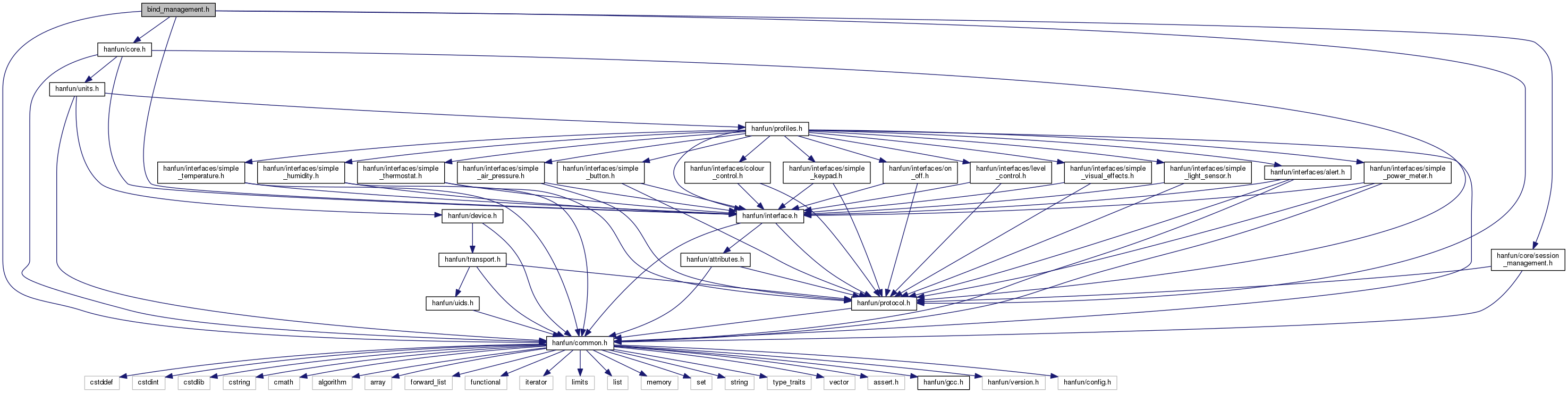

Include dependency graph for bind_management.h:

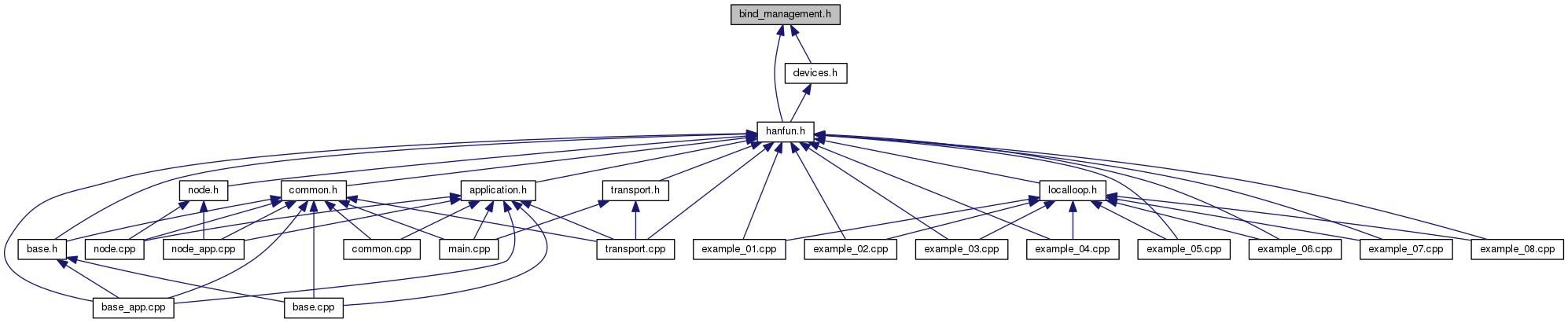

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	HF::Core::BindManagement::Entry
	This represents a bind entry data structure. More...
struct	HF::Core::BindManagement::Message
	Add/Remove Bind message. More...
struct	HF::Core::BindManagement::IEntries
	Bind Management persistent storage API. More...
class	HF::Core::BindManagement::Base
	Parent class for the Bind Management interface implementation. More...
class	HF::Core::BindManagement::Client
	Bind Management interface : Client side. More...
struct	HF::Core::BindManagement::IServer
	Bind Management interface : Server side API. More...
struct	HF::Core::BindManagement::AbstractServer
	Parent class for bind management - server role. More...
struct	HF::Core::BindManagement::Entries
	Default implementation of the bind entries container. More...
struct	HF::Core::BindManagement::Server< _Entries >
	Helper class used to implement custom functionality to the bind management server side. More...

Namespaces
	HF
	Top-level namespace for the HAN-FUN library.
	HF::Devices
	This is the top-level namespace for the HAN-FUN devices implementation.
	HF::Devices::Concentrator
	This is the namespace for the implementation of HAN-FUN Concentrator devices.
	HF::Core
	This is the top-level namespace for the Core Services and Interfaces implementation.
	HF::Core::BindManagement
	This namespace contains the classes that implement the Bind Management service.

Enumerations
enum	HF::Core::BindManagement::CMD {   HF::Core::BindManagement::ADD_BIND_CMD = 0x01, HF::Core::BindManagement::REMOVE_BIND_CMD = 0x02, HF::Core::BindManagement::START_SESSION_CMD = 0x03, HF::Core::BindManagement::END_SESSION_CMD = 0x04,   HF::Core::BindManagement::GET_ENTRIES_CMD = 0x05 }
	Commands. More...
enum	HF::Core::BindManagement::Attributes { HF::Core::BindManagement::NUMBER_OF_ENTRIES_ATTR = 0x01 }
	Attributes. More...

Functions
HF::Attributes::IAttribute *	HF::Core::create_attribute (HF::Core::BindManagement::IServer *server, uint8_t uid)
	Create an attribute object that can hold the attribute with the given uid. More...
HF::Attributes::IAttribute *	HF::Core::BindManagement::create_attribute (uint8_t uid)
	Create an attribute object that can hold the attribute with the given uid. (HF::Core::BindManagement::Server *,uint8_t) More...
std::ostream &	operator<< (std::ostream &stream, const HF::Core::BindManagement::CMD command)
	Convert the given command into a string and write it to the given stream. More...
std::ostream &	operator<< (std::ostream &stream, const HF::Core::BindManagement::Attributes attribute)
	Convert the given attribute into a string and write it to the given stream. More...

Detailed Description

This file contains the definitions for the core Bind Management Interface of the HAN-FUN protocol.

Version

1.5.3

Copyright

Copyright ©   2014 ULE Alliance

For licensing information, please see the file 'LICENSE' in the root folder.

Initial development by Bithium S.A. [http://www.bithium.com]

Definition in file bind_management.h.
